Toyota Highlander Service Manual: Rear suspension

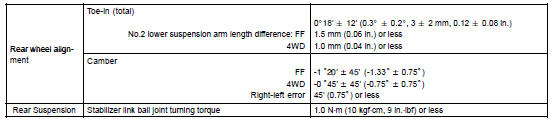

SERVICE DATA

Rear suspension

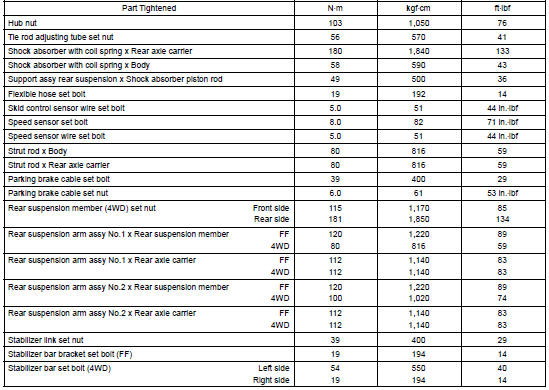

TORQUE SPECIFICATION

Rear suspension
