Toyota Highlander Service Manual: Differential

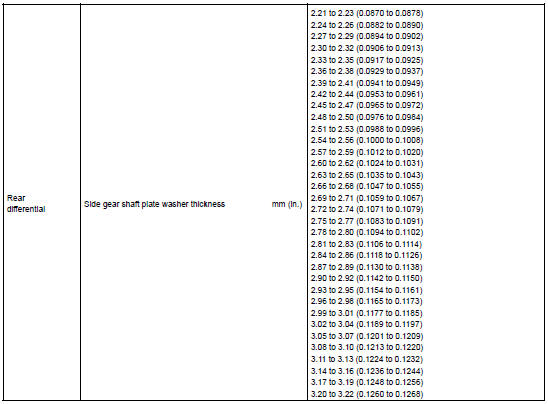

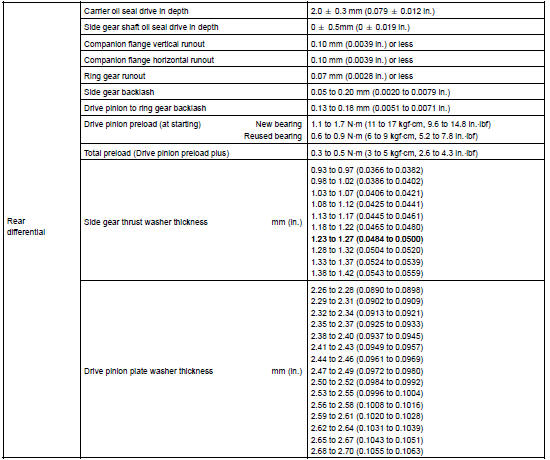

SERVICE DATA

Differential


Differential

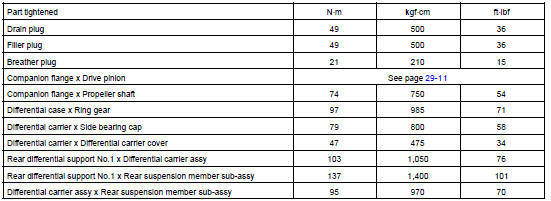

TORQUE SPECIFICATION

Differential
