Toyota Highlander Service Manual: Front suspension
Toyota Highlander Service Manual / Service specifications / Front suspension

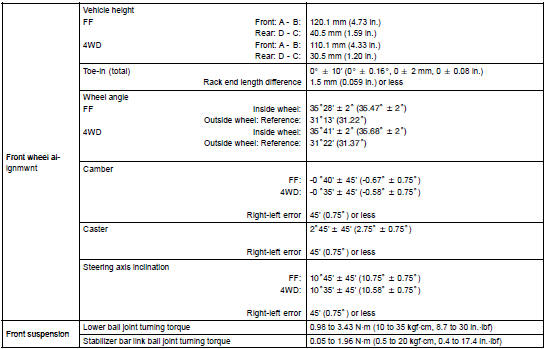

SERVICE DATA
A: Ground clearance of front wheel center B: Ground clearance of lower suspension arm No. 2 set bolt center C: Ground clearance of strut rod set bolt center D: Ground clearance of rear wheel center

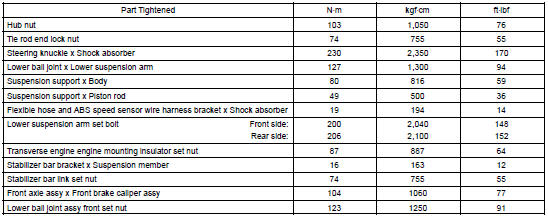

TORQUE SPECIFICATION
