Toyota Highlander Owners Manual: Moving a second seat for third seat access

Toyota Highlander Owners Manual / Operation of each component / Adjusting the seats / Rear seats / Moving a second seat for third seat access

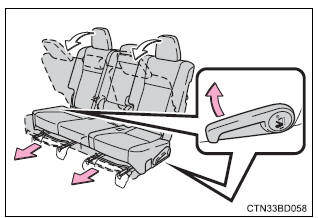

Getting in the vehicle

Pull the lever and tilt the seatback forward.

Move the seat to the front-most position.

Toyota Highlander. Getting in the vehicle

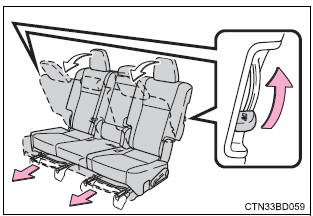

Getting out of the vehicle

Pull the lever on the side of the seatback and tilt the seatback forward.

Move the seat to the front-most position.

Toyota Highlander. Getting out of the vehicle

After passengers have entered/exited the vehicle

Lift up the seatback and slide the seat backward until it locks.

Adjustment procedure

Second seats Without a side table With a side table Seat position adjustment lever seatback angle adjustment lever Pull the lever until the lock is completely released. T ...

Folding down the second seats

Before folding down the second seats Stow the armrest. With a side table: stow the side table. Stow the second seat belt buckles. Without a side table With a side table ...
