Toyota Highlander Owners Manual: Adjustment procedure

Toyota Highlander Owners Manual / Operation of each component / Adjusting the seats / Rear seats / Adjustment procedure

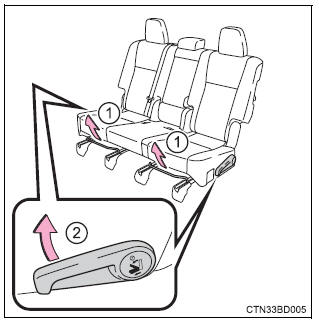

Second seats

Without a side table

Toyota Highlander. Second seats

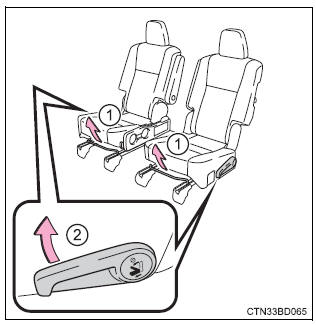

With a side table

Toyota Highlander. Second seats

Seat position adjustment lever
seatback angle adjustment lever

Pull the lever until the lock is completely released.

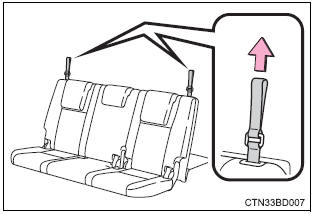

Third seats

Seatback angle adjustment strap

Toyota Highlander. Third seats

Rear seats

...

Moving a second seat for third seat access

Getting in the vehicle Pull the lever and tilt the seatback forward. Move the seat to the front-most position. Getting out of the vehicle Pull the lever on the side of the seatback and ti ...
