Toyota Highlander Owners Manual: Folding down the second seats
Toyota Highlander Owners Manual / Operation of each
component / Adjusting the seats / Rear seats / Folding down the second seats
Before folding down the second seats
- Stow the armrest.
- With a side table: stow the side table.

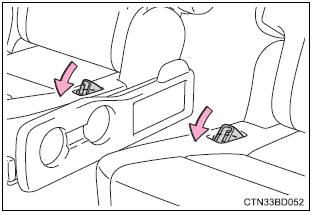

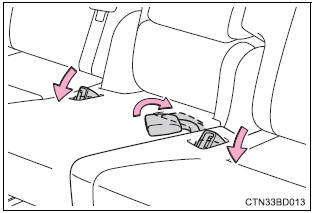

- Stow the second seat belt buckles.
- Without a side table
- With a side table

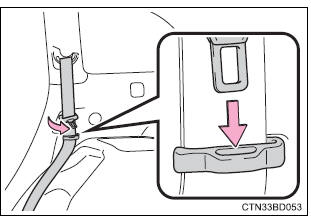

- Pass the outer seat belts
through the seat belt hangers
and secure the seat belt
plates.
This prevents the shoulder belts from being damaged.
Make sure that the seat belts are removed from the hangers before using them.
- Lower the head restraints to the lowest position.
Folding down the second seats

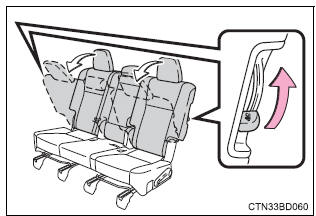

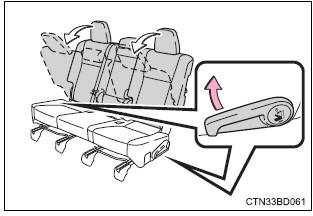

- Pull the lever and tilt the seatback forward.
Each seatback may be folded separately.
- From inside
- From outside

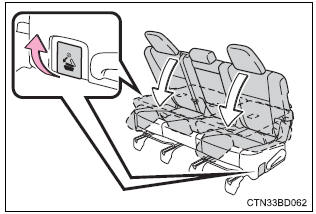

- Pull the lever to unlock the seatback. The seatback will be folded down.
After folding down the second seats

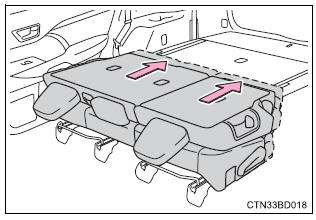

Slide the folded second seats backward until they lock.
Returning the second seats

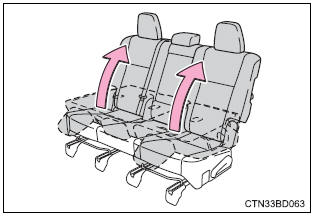

Lift up the seatbacks until they lock.
Moving a second seat for third seat access
Getting in the vehicle
Pull the lever and tilt the seatback
forward.
Move the seat to the front-most
position.
Getting out of the vehicle
Pull the lever on the side of the
seatback and ti ...
Folding down the third seats
Before folding down the third seats
Stow the third seat belt buckles.
Pass the outer seat belts
through the seat belt hangers
and secure the seat belt
plates.
This prevents the s ...
