Toyota Highlander Service Manual: Starting & charging

SERVICE DATA

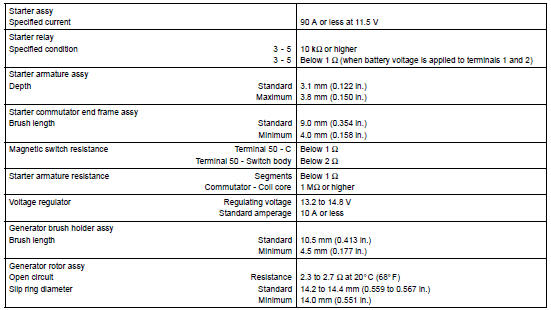

2AZ-FE

Starting & charging

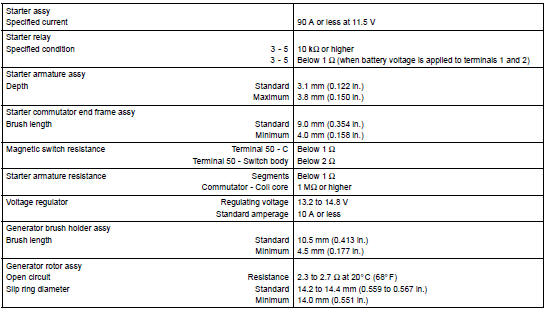

3MZ-FE

Starting & charging


TORQUE SPECIFICATION

2AZ-FE

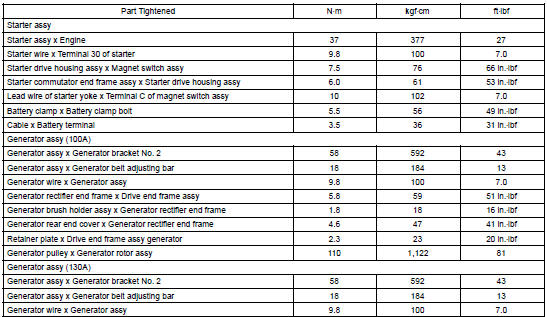

TORQUE SPECIFICATION


3MZ-FE

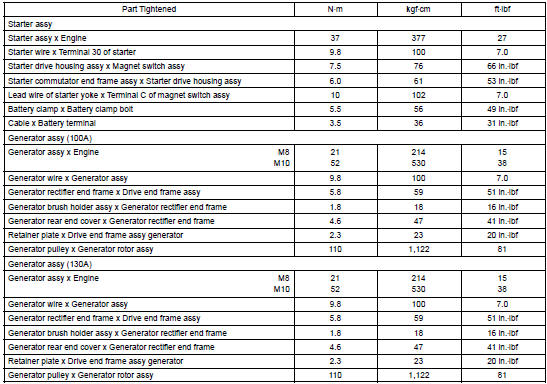

TORQUE SPECIFICATION


TORQUE SPECIFICATION
