Toyota Highlander Owners Manual: Engine compartment

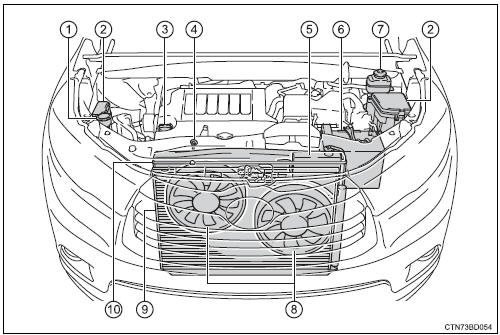

2.7 L 4-cylinder (1ar-fe) engine

Toyota Highlander. Engine compartment


  1. Washer fluid tank
  2. Fuse boxes
  3. Engine oil level dipstick
  4. Engine oil filler cap
  5. Engine coolant reservoir
  6. Battery
  7. Brake fluid reservoir
  8. Electric cooling fans
  9. Condenser
  10. Radiator

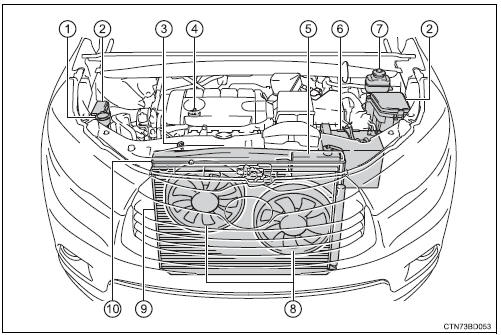

3.5 L v6 (2gr-fe) engine

Toyota Highlander. Engine compartment


  1. Washer fluid tank
  2. Fuse boxes
  3. Engine oil filler cap
  4. Engine oil level dipstick
  5. Engine coolant reservoir
  6. Battery
  7. Brake fluid reservoir
  8. Electric cooling fans
  9. Vondenser
  10. Radiator
Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with the jack and perform the operation safely. When raising your vehicle with a floor jack, position the jack correctly. ...

Engine oil
With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil Park the vehicle on level ground. After warming up the engine and turning ...
