Toyota Highlander Service Manual: Transfer (4WD)

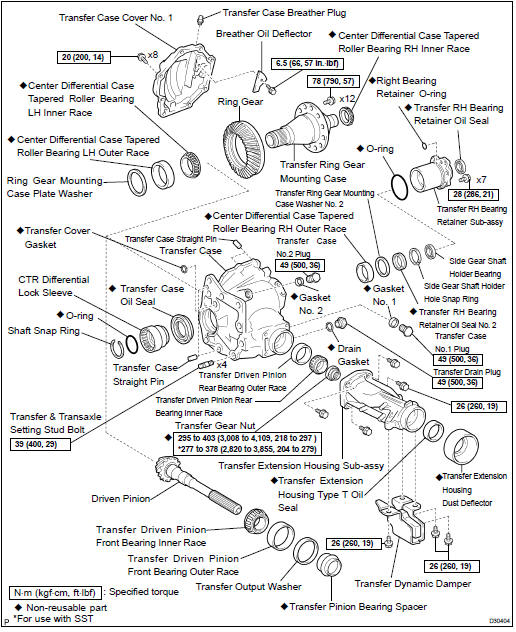

Transfer system (4WD)

PRECAUTION Before disassembly, clean the transfer assy and remove any deposited sand or mud to prevent it from entering the inside of the transfer during disassembly and assembly. When remo ...

Transfer oil (4WD)

ADJUSTMENT 1. REMOVE EXHAUST PIPE ASSY FRONT (3MZ-FE ENGINE TYPE) (SEE PAGE 15-5 ) 2. REMOVE EXHAUST PIPE ASSY FRONT (2AZ-FE ENGINE TYPE) (SEE PAGE 15-2 ) 3. INSPECT TRANSFER OIL (a) Remove th ...

More about Toyota Highlander:

Transfer extension housing type T oil seal (4WD)
REPLACEMENT 1. REMOVE EXHAUST PIPE ASSY (3MZ-FE ENGINE TYPE) (SEE PAGE 15-5 ) 2. REMOVE EXHAUST PIPE ASSY (2AZ-FE ENGINE TYPE) (SEE PAGE 15-2 ) 3. REMOVE TRANSFER CASE NO.1 PLUG 4. REMOVE TRANSFER DRAIN PLUG 5. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (SEE PAGE 30-12 ) 6. REMOVE TRANSFER E ...
