Toyota Highlander Owners Manual: Shifting the shift lever
Vehicles without a
smart key system:

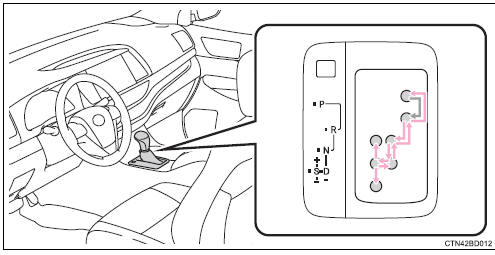

while the engine switch is in the “on” position, depress the
brake pedal and move the shift lever.
When shifting the shift lever between p and d, make sure that the vehicle is completely stopped.
Vehicles with a smart key system: while the engine switch is in ignition on mode, depress the brake pedal and move the shift lever.
When shifting the shift lever between p and d, make sure that the vehicle is completely stopped.
Shift position purpose
*1: Shifting the shift lever to d allows the system to select a gear suitable
for
the driving conditions.
Setting the shift lever to d is recommended for normal driving.
*2: Selecting shi ...
