Toyota Highlander Owners Manual: Operating instructions

Toyota Highlander Owners Manual / Driving / Operating the lights and wipers / Headlight switch / Operating instructions

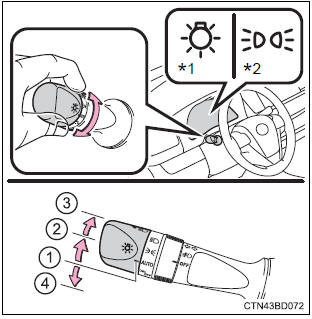

Turning the end of the lever turns on the lights as follows:

The
headlights, daytime running lights and all the lights listed below turn on and off automatically.
(Vehicles without a smart key system: when the engine switch is in the “on” position) (vehicles with a smart key system: when the engine switch is in ignition on mode)

Toyota Highlander. Operating instructions

The side
marker, parking, tail, license plate, daytime running lights and instrument panel lights turn on.
The
headlights and all the lights listed above (except daytime running lights) turn on.
*1 The
daytime running lights turn off.
*2 The
daytime running lights turn on.

*1: For u.S.A.

*2: For canada

Headlight switch

The headlights can be operated manually or automatically. ...

Turning on the high beam headlights

With the headlights on, push the lever away from you to turn on the high beams. Pull the lever toward you to the center position to turn the high beams off. Pull the lever toward you an ...
