Toyota Highlander Service Manual: Rear suspension system

PROBLEM SYMPTOMS TABLE

Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem.

Inspect and repair or replace parts as necessary according to the steps on the following pages.

Symptom

Suspected Area

Bottoming
  1. Vehicle (Overloaded)
  2.  Spring (Weak)
  3.  Shock absorber (Worn)
Sways/pitches
  1. Tire (Worn or improperly inflated)
  2.  Stabilizer bar (Bent or broken)
  3.  Shock absorber (Worn)
Rear wheel shimmy
  1. Tire (Worn or improperly inflated)
  2.  Wheel (Out of balance)
  3.  Shock absorber (Worn)
  4.  Wheel alignment (Incorrect)
  5.  Hub bearing (Worn)
Abnormal tire wear
  1. Tire (Worn or improperly inflated)
  2.  Wheel alignment (Incorrect)
  3.  Shock absorber (Worn)
  4.  Suspension parts (Worn)

COMPONENTS

COMPONENTS


COMPONENTS


COMPONENTS

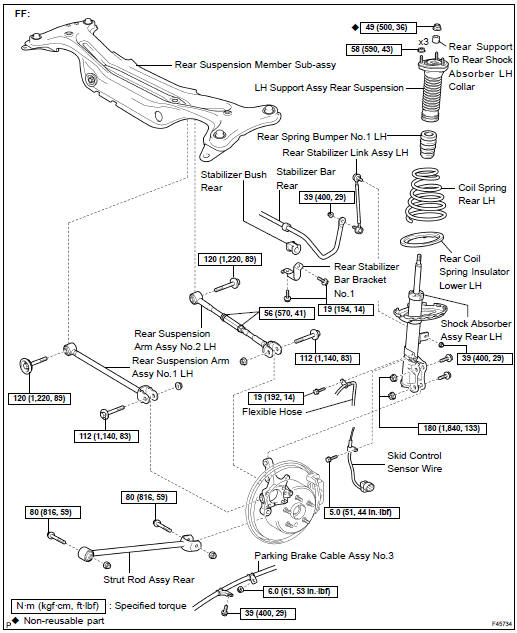

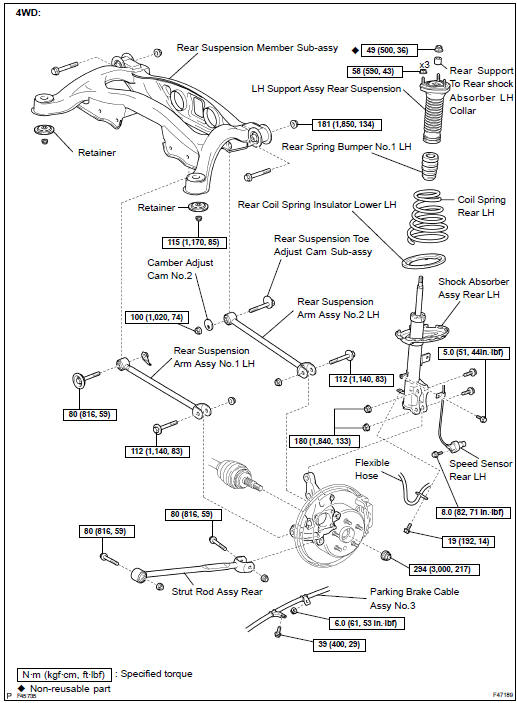

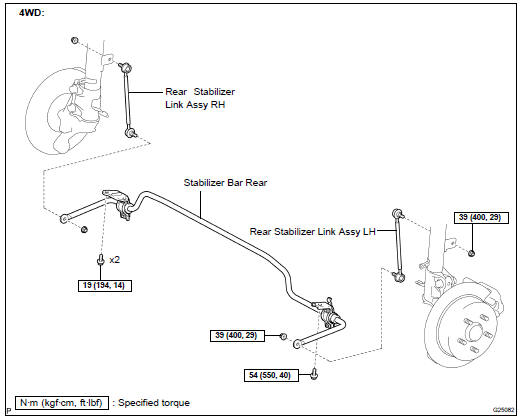

Rear suspension
...

Rear wheel alignment
ADJUSTMENT 1. INSPECT TIRE (SEE PAGE 28-1 ) 2. MEASURE VEHICLE HEIGHT (SEE PAGE 26-7 ) NOTICE: Before inspecting wheel alignment, adjust the vehicle height to the specified value. 3. INSPECT TO ...
