Toyota Highlander Service Manual: Rear spoiler
REPLACEMENT
1. REMOVE BACK WINDOW PANEL TRIM UPPER (See page 75-20 )
2. REMOVE REAR SPOILER
(a) Remove the 2 bolts and nut.
(b) Using a heat light, heat the body and rear spoiler to 40 to 60 C (104 to 140 F).
NOTICE: Do not heat the rear spoiler excessively.
(c) Tie both piano wire ends to a wooden block or a similar object.
(d) Scrape the adhesive tape off by pulling the piano wire.
NOTICE:
- If reusing the rear spoiler, take care not to damage the rear spoiler.
- Do not damage the body.
(e) Remove the rear spoiler.
3. INSTALL REAR SPOILER
(a) Using a heat light, heat the body and rear spoiler surface to 40 to 60 C (104 to 140 F).
NOTICE: Do not heat the body and rear spoiler excessively.
(b) Remove the adhesive tape from the body.
(c) Wipe off the stains with cleaner.
(d) If reusing the rear spoiler: Clean the rear spoiler .
- Using a heat light, heat the body and rear spoiler to 20 to 30 C (68 to 86 F).
NOTICE: Do not heat the body and rear spoiler excessively.
- Remove the adhesive tape from the rear spoiler.
- Wipe off the stains with cleaner.
- Apply new adhesive tape to the rear spoiler as shown in the illustration.
(e) Using a heat light, heat the body and rear spoiler.
Heating temperature:
NOTICE: Do not heat the body and rear spoiler excessively.
(f) Lift the rear spoiler and release the release sheet from the surface of the rear spoiler.
NOTICE:
- When the rear spoiler release sheet is removed, take care that no dirt or no dust can get onto the uncoated area.
- Do not apply excessive force onto the rear spoiler but steady pressure with your thumbs.

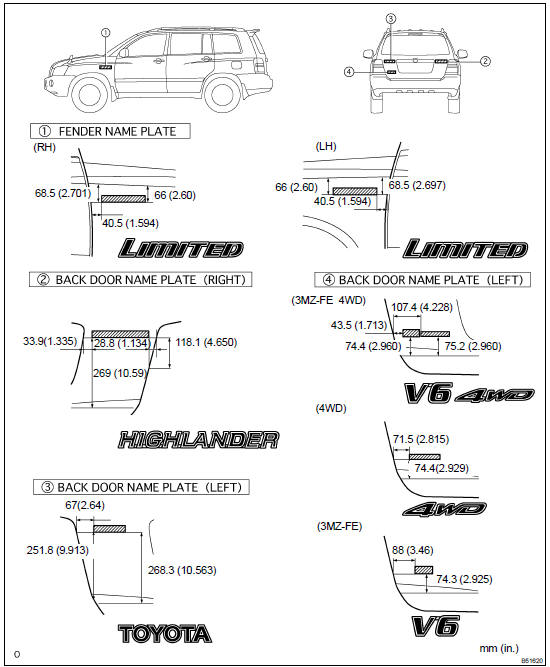

Name plate
