Toyota Highlander Service Manual: Engine control system

Toyota Highlander Service Manual / Service specifications / Engine control system

SERVICE DATA

2AZ-FE

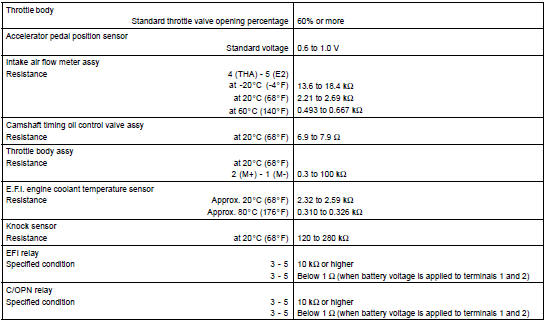

SERVICE DATA

3MZ-FE:

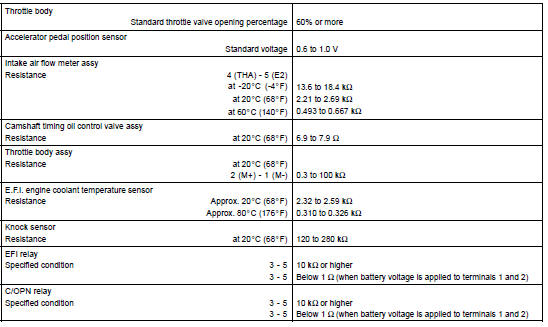

SERVICE DATA

TORQUE SPECIFICATION

2AZ-FE:

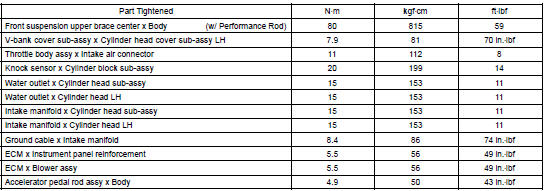

TORQUE SPECIFICATION

3MZ-FE:

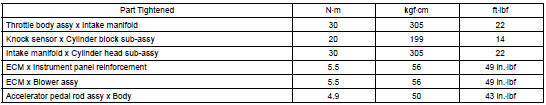

TORQUE SPECIFICATION
