Toyota Highlander Service Manual: Drive shaft / propeller shaft / axle

Toyota Highlander Service Manual / Drive shaft / propeller shaft / Drive shaft / propeller shaft / axle

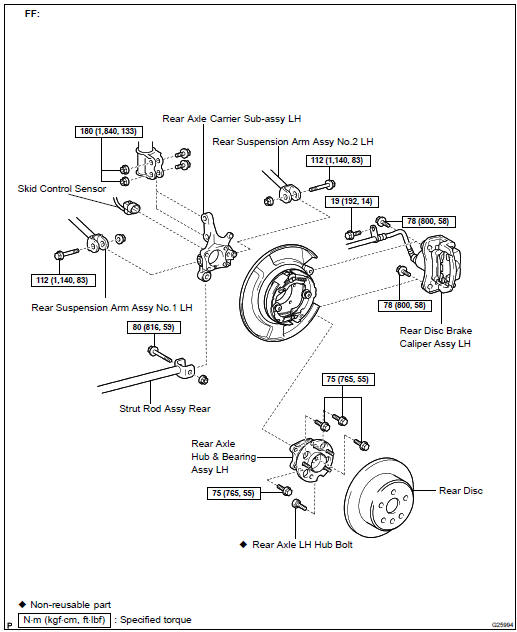

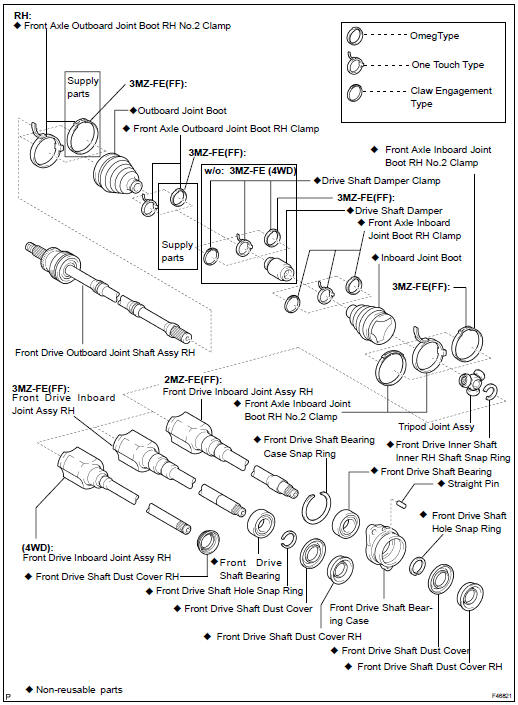

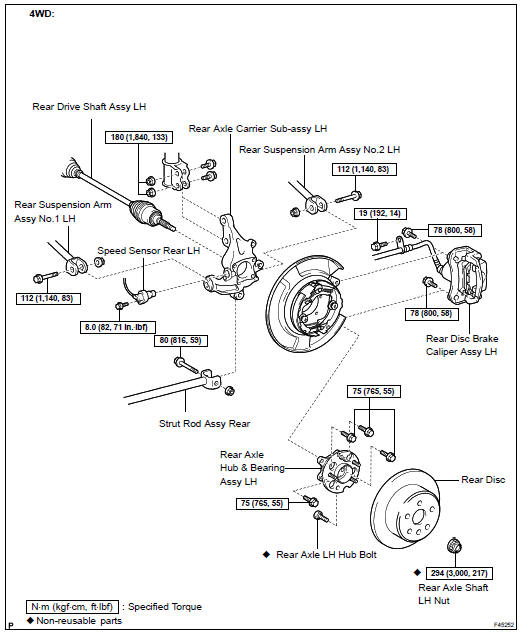

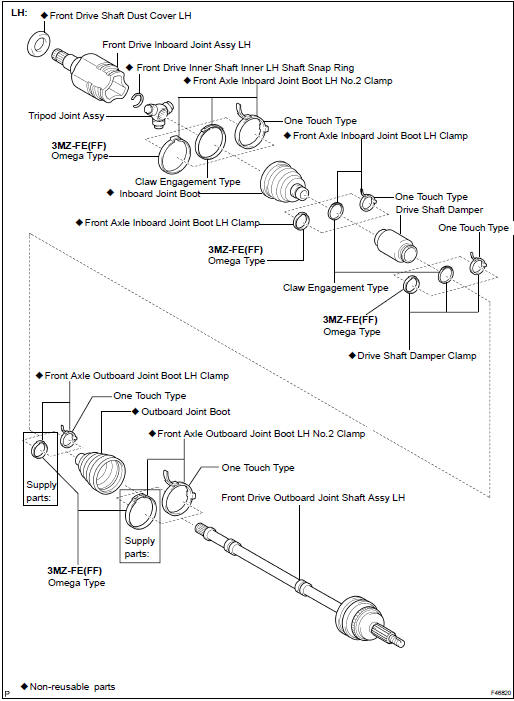

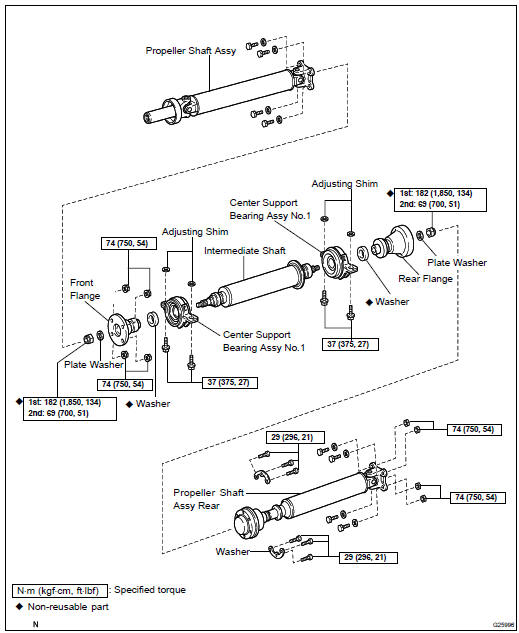

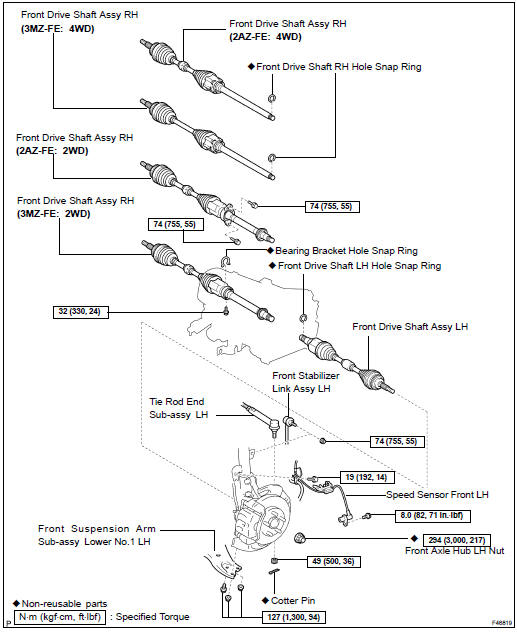

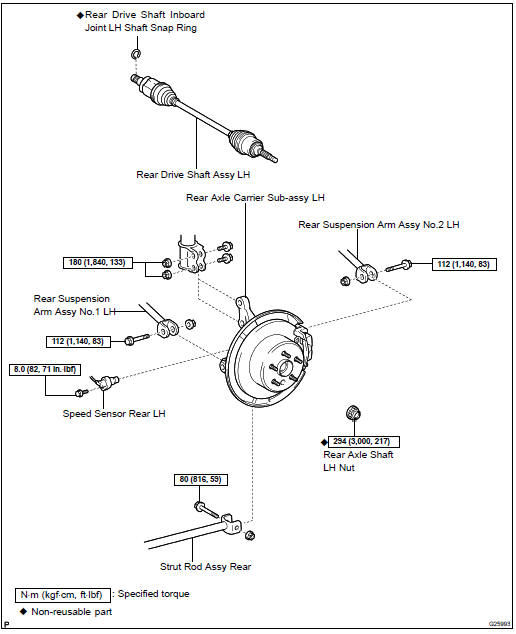

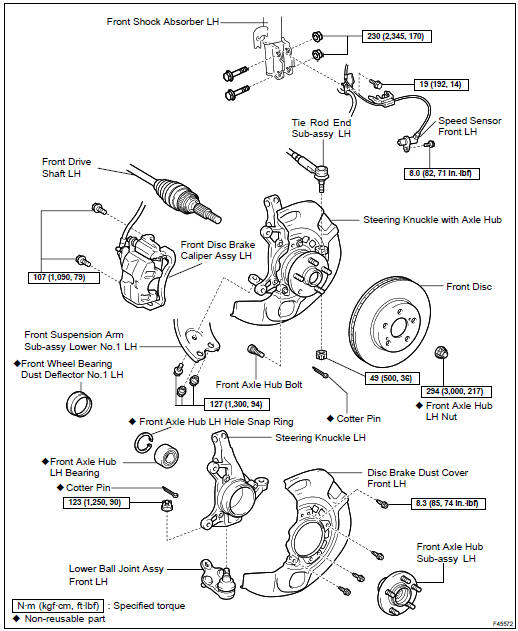

COMPONENTS

COMPONENTS


COMPONENTS


COMPONENTS


COMPONENTS


COMPONENTS


COMPONENTS


COMPONENTS


COMPONENTS


On-vehicle inspection
1. INSPECT FRONT AXLE HUB BEARING LOOSENESS (a) Using a dial indicator, check for looseness near the center of the axle hub. Maximum: 0 mm (0 in.) If looseness exceeds the maximum, replace the ...

Propeller W/Center bearing shaft Propeller w/center bearing shaft
OVERHAUL HINT: COMPONENTS:SEE PAGE 30-4 1. REMOVE EXHAUST PIPE ASSY 2. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (a) Depress the brake pedal and hold it. (b) Using a hexagon wrench (6 mm) ...
