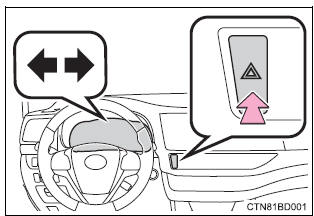

The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the battery may discharge.
Brake pedal sub-assy
ADJUSTMENT
1. CHECK AND ADJUST BRAKE PEDAL HEIGHT
(a) Check brake pedal height.
Pedal height from asphalt sheet:
150 to 160 mm (5.906 to 6.299 in.)
(b) Adjust brake pedal height.
Disconnect the connector from the stop lamp switch
assy.
Loosen the stop lamp switch lock nu ...
