Toyota Highlander Service Manual: Transfer

Toyota Highlander Service Manual / Preparation / Transfer

PREPARATION

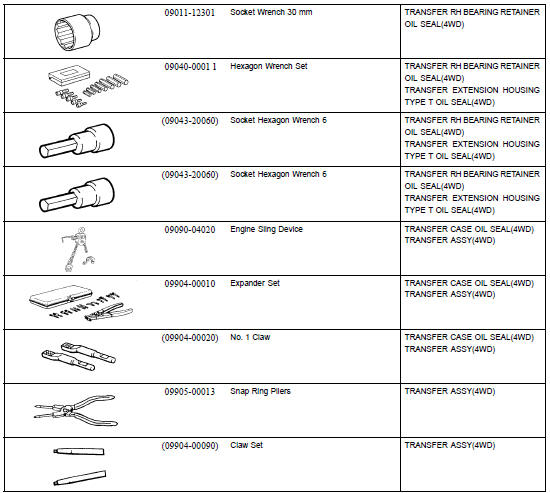

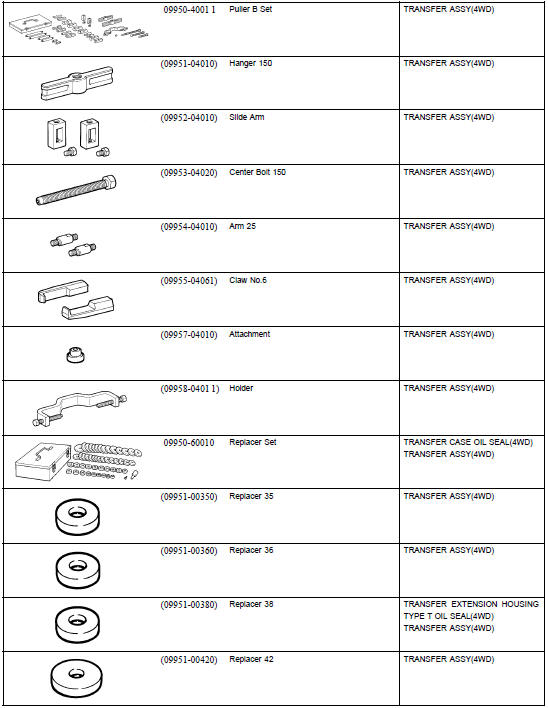

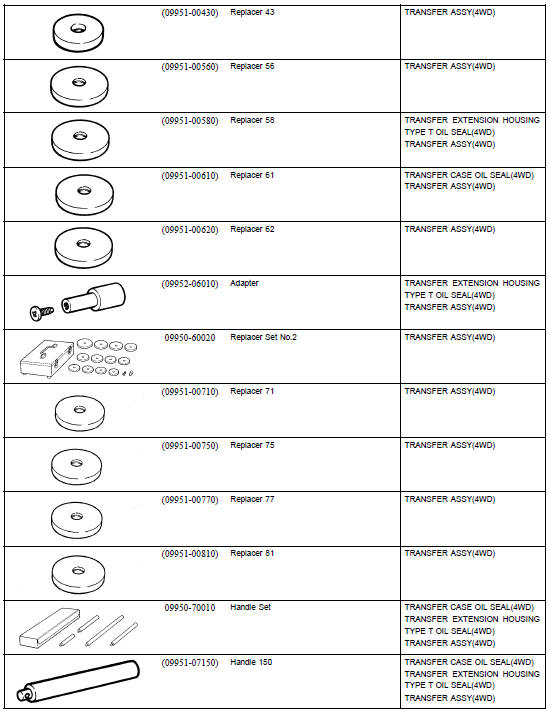

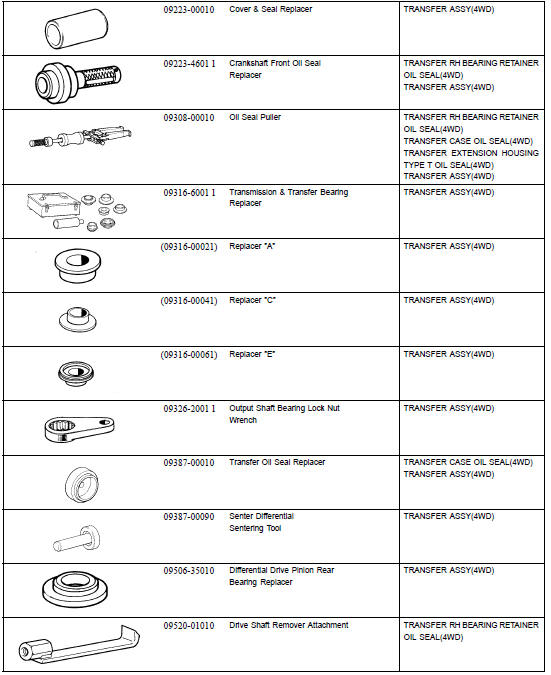

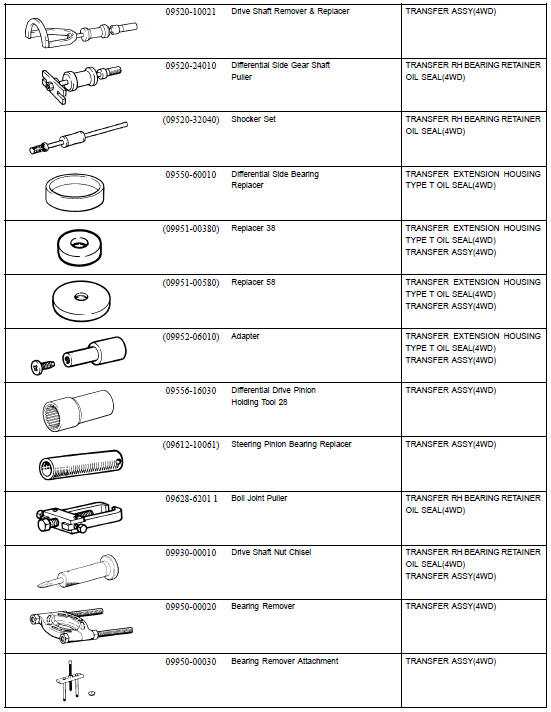

SST

Transfer

Recomended Tools

Transfer

SSM

Transfer

Equipment

Transfer

Lubricant

Transfer
