Toyota Highlander Service Manual: Drive shaft / propeller shaft

Toyota Highlander Service Manual / Preparation / Drive shaft / propeller shaft

PREPARATION

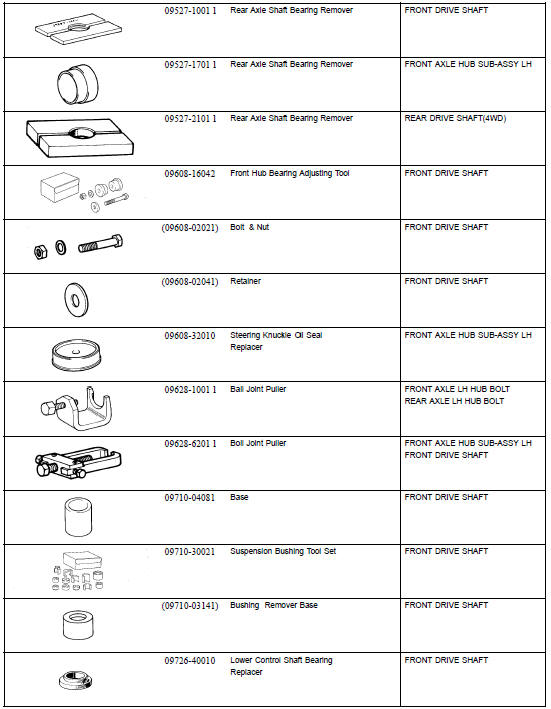

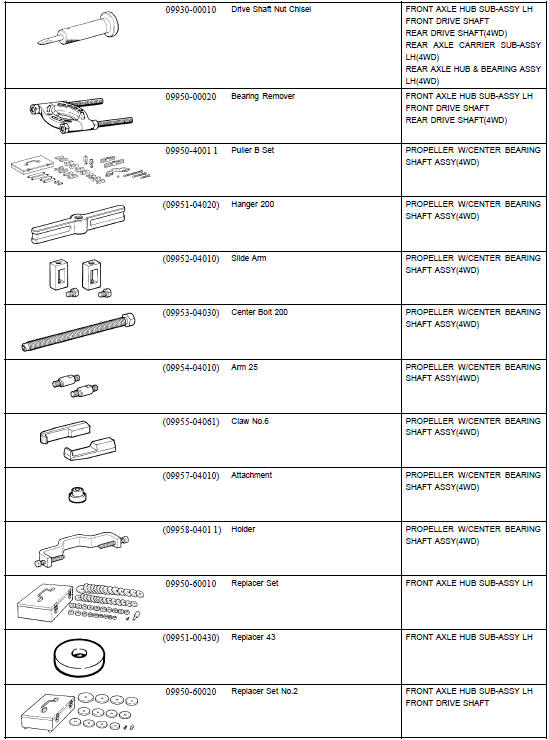

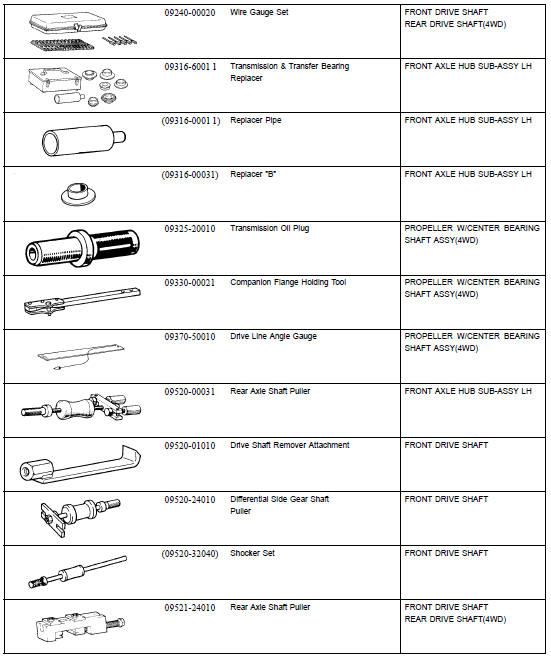

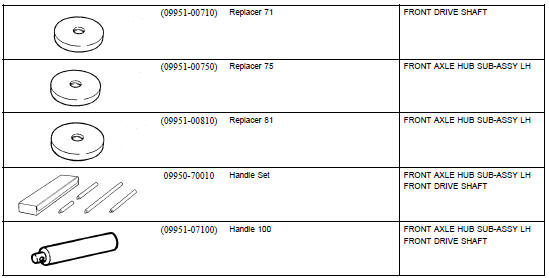

SST

Drive shaft / propeller shaft


Drive shaft / propeller shaft


Drive shaft / propeller shaft


Drive shaft / propeller shaft

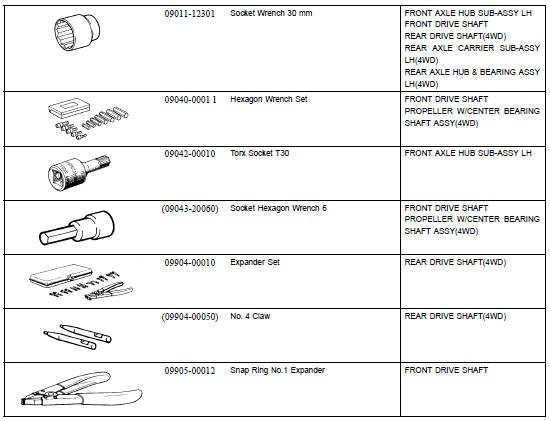

Recomended Tools

Drive shaft / propeller shaft


Drive shaft / propeller shaft


Equipment

Drive shaft / propeller shaft

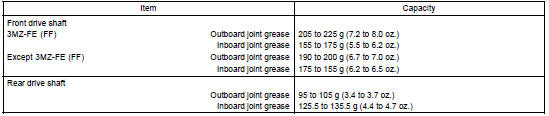

Lubricant

Drive shaft / propeller shaft
