Toyota Highlander Owners Manual: Tire section names
Toyota Highlander Owners Manual / Vehicle specifications / Specifications / Tire information / Tire section names

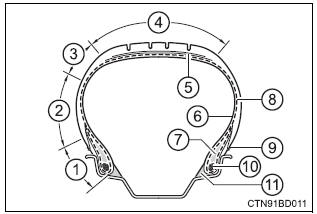

- Bead
- sidewall
- shoulder
- tread
- belt
- inner liner
- reinforcing rubber
- carcass
- rim lines
- bead wires
- chafer
