Toyota Highlander Owners Manual: Tire size

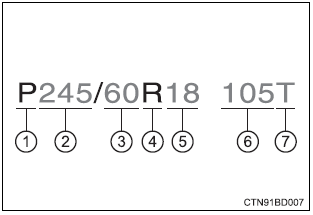

Typical tire size information

The illustration indicates typical tire size.

  1. Tire use (p = passenger car, t = temporary use)
  2. section width (millimeters)
  3. aspect ratio (tire height to section width)
  4. tire construction code (r = radial, d = diagonal)
  5. wheel diameter (inches)
  6. load index (2 digits or 3 digits)
  7. speed symbol (alphabet with one letter)

Toyota Highlander. Typical tire size information

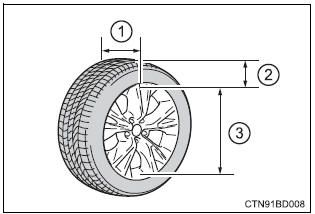

Tire dimensions

  1. Section width
  2. tire height
  3. wheel diameter

Toyota Highlander. Tire dimensions


Typical dot and tire identification number (tin)
Dot symbol* tire identification number (tin) tire manufacturers identification mark tire size code manufacturers optional tire type code (3 or 4 letters) manufacturing week manufa ...

Tire section names
Bead sidewall shoulder tread belt inner liner reinforcing rubber carcass rim lines bead wires chafer ...
