Toyota Highlander Service Manual: Washer nozzle
Toyota Highlander Service Manual / Wiper & washer / Washer nozzle
INSPECTION
1. INSPECT WASHER NOZZLE

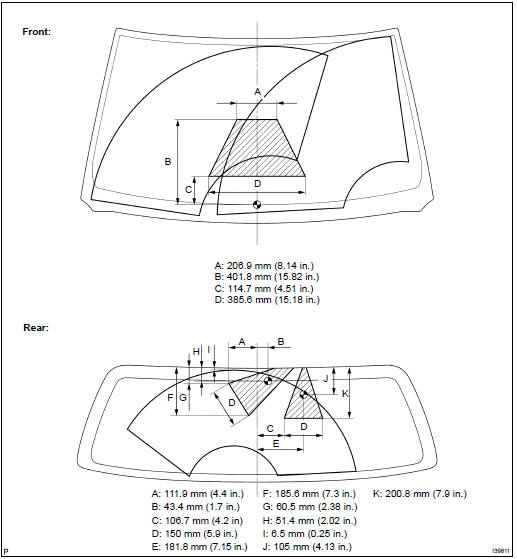

(a) With the engine running, check that the washer fluid hits in the range indicated by the hatched areas on the windshield and the rear window.
HINT: This washer nozzle does not have an adjustment function because this nozzle is a spray type.
