Toyota Highlander Owners Manual: Turning the lda system on

Toyota Highlander Owners Manual / Driving / Using the driving support systems / Lda (lane departure alert) / Turning the lda system on

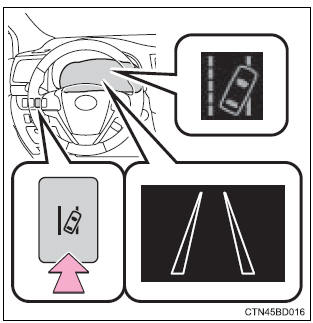

Vehicles with monochrome display

Toyota Highlander. Turning the lda system on

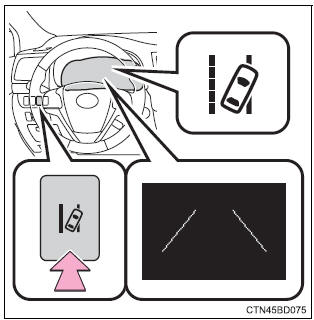

Vehicles with color display

Toyota Highlander. Turning the lda system on

Press the lda switch to activate the system.

The lda indicator and lane lines will come on.

Press the switch again to turn the lda system off.

The lda system will remain on or off even if the engine switch is turned to ignition on mode.

Operating conditions

When the vehicle speed is approximately 32 mph (50 km/h) or more
when the lane width is more than approximately 8.2 Ft. (2.5 M)
when driving on a straight road or through a curve with a radius of more than approximately 328 ft. (100 M)

Summary of function

While driving on a road that has lane markers, this system recognizes the lane markers using a camera as a sensor to alert the driver when the vehicle deviates from its lane. If the system judges ...

Indication on the multi-information display

Vehicles with monochrome display Vehicles with color display When the inside of both lane lines turn white: indicates that both right and left lane markers are recognized. If t ...
