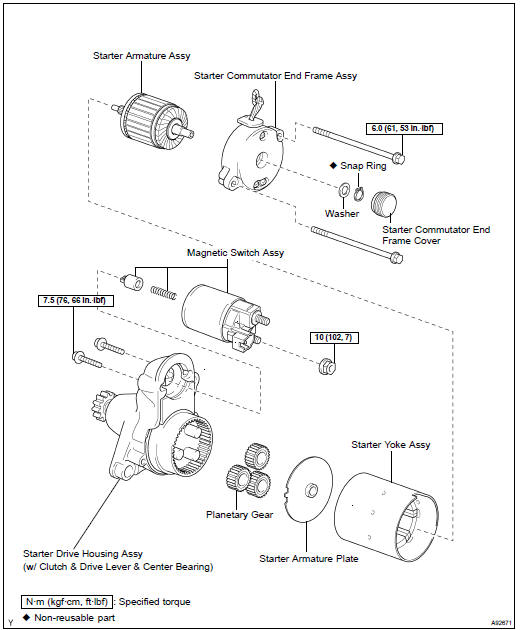

COMPONENTS
Starting system (2AZ-FE)
INSPECTION
1. INSPECT STARTER ASSY
NOTICE:
These tests must be performed within 3 to 5 seconds to
avoid burning out the coil.
(a) Do the pull-in test.
Disconnect the lead wire from ...
Replacement
NOTICE:
Before changing the starter, check the following again:
Connector connection
Accessory installation
1. REMOVE BATTERY
2. REMOVE BATTERY TRAY
3. REMOVE STARTER ASSY
(a) Disconn ...
