Toyota Highlander Service Manual: Power steering
Toyota Highlander Service Manual / Service specifications / Power steering

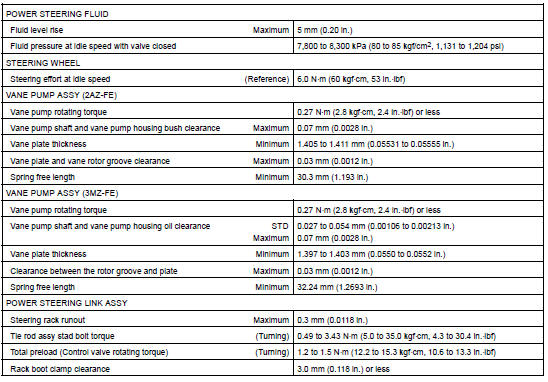

SERVICE DATA

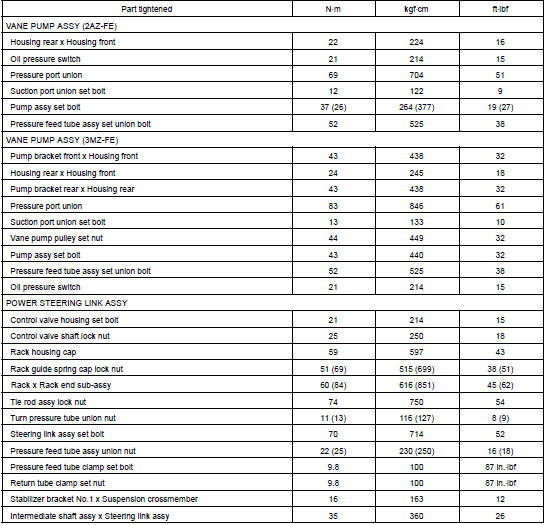

TORQUE SPECIFICATION
( ): For use without SST
Steering column
SERVICE DATA
TORQUE SPECIFICATION
...
Heater & air conditioner
SERVICE DATA
TORQUE SPECIFICATION
...
