SERVICE DATA

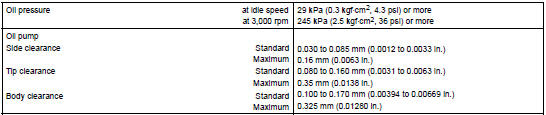

2AZ-FE

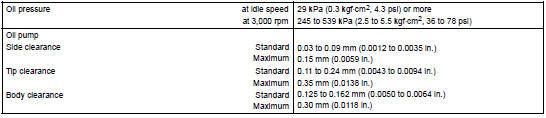

3MZ-FE

TORQUE SPECIFICATION

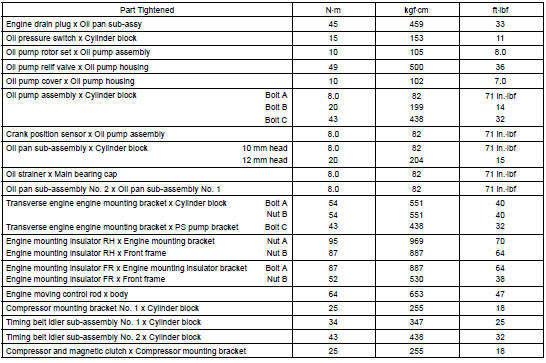

2AZ-FE

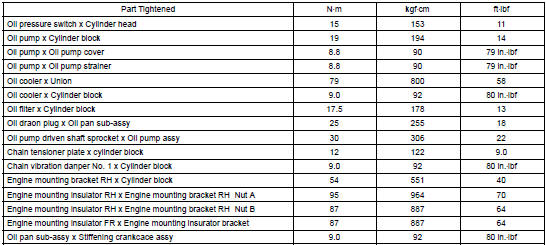

3MZ-FE

Cooling
IgnitionExhaust pipe ASSY (3MZ-FE)
COMPONENTS
REPLACEMENT
NOTICE:
Check if an old gasket remains on the pipe. If remains, remove it. Check if any
bolts or nuts are rusted.
If rusted, replace them.
1. REMOVE HEATED OXYGEN SENSOR
(a) Remove the 2 heated oxygen sensors (bank 1, 2 sensor
2).
2. REMOVE EXHAUST PIPE ASSY ...
