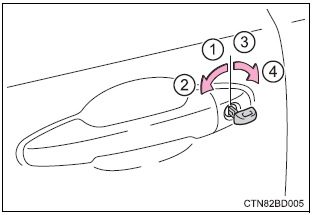

Use the mechanical key In order to perform the following operations:

locks all the doors
closes the windows and moon roof*1 (turn and hold)*2
Unlocks the door turning the key rearward unlocks the driver¢¦s door. Turning the key once again within 5 seconds unlocks the other doors.
Opens the windows and moon roof*1 (turn and hold)*2

Toyota Highlander. Locking and unlocking the doors and key linked functions

*1: If equipped
*2: this setting must be customized at your toyota dealer.

If the electronic key does not operate properly

If communication between the electronic key and vehicle is interrupted Or the electronic key cannot be used because the battery is depleted, the smart key system and wireless remote control c ...

Starting the engine

Ensure that the shift lever is in p and depress the brake pedal. Touch the toyota emblem side of the electronic key to the engine switch. When the electronic key is detected, a buzzer sou ...
