Toyota Highlander Service Manual: Location

Toyota Highlander Service Manual / Windshield/windowglass/mirror / Defogger system / Location

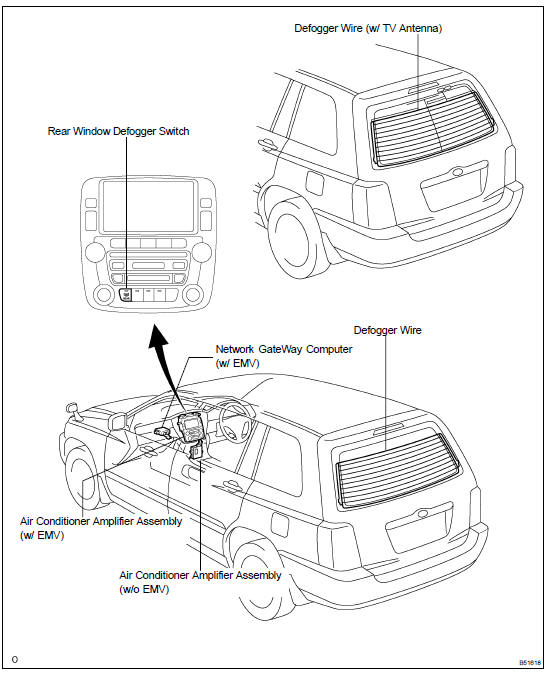

Location


PROBLEM SYMPTOMS TABLE

Symptom

Suspected Area
Rear window defogger does not operate (Indicator lamp On)
  1. Communication Function
  2.  RR DEF 30 A Fuse
  3.  Defogger Relay
  4.  Rear Window Defogger Wire
  5.  Wire Harness
  6.  A/C ECU
Rear window defogger does not operate (Indicator lamp OFF)
  1. Heater 15A Fuse
  2.  A/C Control Panel
  3.  Defogger Switch(A/C Panel Switch)
  4.  A/C ECU
  5.  Wire Harness
  6.  Gateway Computer
Defogger system
...

Inspection
1. INSPECT DEFOGGER RELAY (a) Inspect the defogger relay (Marking: DEF) continuity If the continuity is not as specified, replace the relay. 2. INSPECT AIR CONDITONER CONTROL ASSY (SEE PAGE ...
