Toyota Highlander Owners Manual: Listening to an ipod
Connecting an ipod enables you to enjoy music from the vehicle
speakers.
Select “ipod” on the audio source selection screen.
When the ipod connected to the system includes ipod video, the
system can only output the sound by selecting the browse
screen.
Connecting an ipod

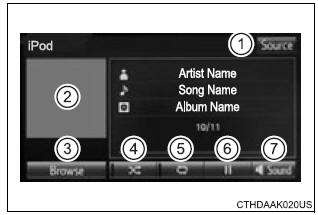

Audio control screen
Pressing the "audio" button displays the audio control screen from
any screens of the selected source.
- Audio source selection screen
appears
- displays cover art
- selecting the play mode
- Shuffle play
- Repeat play
- Pause
select to resume playback
- Setting the sound
Selecting a play mode
- Select “browse” on the screen.
- Select the desired play mode. Then select a song to begin using
the selected play mode.
Shuffle play
Select to change on/off.
Repeat play
Select to change on/off.
?About ipod
- ?Gmade for ipod" and "made for iphone" mean that an electronic
accessory
has been designed to connect specifically to ipod or iphone, respectively,
and has been certified by the developer to meet apple performance standards.
- Apple is not responsible for the operation of this device or its
compliance
with safety and regulatory standards. Please note that the use of this
accessory
with ipod or iphone may affect wireless performance.
- Iphone, ipod, ipod classic, ipod nano, and ipod touch are trademarks of
apple inc., Registered in the u.S. And other countries. Lightning is a
trademark
of apple inc.
Ipod cover art
- Depending on the ipod and songs in the ipod, ipod cover art may be
displayed.
- This function can be changed to on/off.
- It may take time to display ipod cover art, and the ipod may not be
operated
while the cover art display is in process.
- Only ipod cover art that is saved in jpeg format can be displayed.
Ipod functions
- When an ipod is connected and the audio source is changed to ipod mode,
the ipod will resume play from the same point in which it was last used.
- Depending on the ipod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and
reconnecting
it may resolve the problem.
- While connected to the system, the ipod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle's audio system
instead.
- When the battery level of an ipod is very low, the ipod may not operate.
If
so, charge the ipod before use.
- Compatible models
Ipod problems
To resolve most problems encountered when using your ipod, disconnect
your ipod from the vehicle ipod connection and reset it. For instructions on
how to reset your ipod, refer to your ipod owner's manual.
Error messages
Message |
Cause/correction procedures |
“Connection error. Please
consult your owner’s manual
for instructions on how
to connect the ipod.” |
This indicates a problem in the ipod or its connection. |
“No music files found.” |
This indicates that there is no music data in
the ipod. |
“No videos found.” |
This indicates that no video files are included
in the ipod. |
“There are no songs available
for playback. Please
add compatible files to
your ipod.” |
This indicates that songs are not found in a
selected playlist. |
“Ipod authorization unsuccessful.” |
This indicates that the display audio system
failed to authorize the ipod.
Please check your ipod. |
Compatible models
The following ipodr, ipod nanor, ipod classicr, ipod touchr and iphoner
devices can be used with this system.
?œMade for
- Ipod touch (5th generation)
- Ipod touch (4th generation)
- Ipod touch (3rd generation)
- Ipod touch (2nd generation)
- Ipod touch (1st generation)
- Ipod classic
- Ipod with video
- Ipod nano (7th generation)
- Ipod nano (6th generation)
- Ipod nano (5th generation)
- Ipod nano (4th generation)
- Ipod nano (3rd generation)
- Ipod nano (2nd generation)
- Ipod nano (1st generation)
- Iphone 5
- Iphone 4s
- Iphone 4
- Iphone 3gs
- Iphone 3g
- Iphone
Depending on differences between models or software versions etc., Some
models might be incompatible with this system.
Warning
While driving
Do not connect an ipod or operate the controls. |
Notice
To prevent damage to the ipod or its terminals
- Do not leave the ipod in the vehicle. The temperature inside the
vehicle
may become high, resulting in damage to the ipod.
- Do not push down on or apply unnecessary pressure to the ipod
while it is
connected.
- Do not insert foreign objects into the port.
|
Connecting a usb memory device enables you to enjoy music
from the vehicle speakers.
Touch “usb” on the audio source selection screen.
Connecting a usb memory device
Audio control screen
Pr ...
