Toyota Highlander Owners Manual: Listening to a usb
memory device
Connecting a usb memory device enables you to enjoy music
from the vehicle speakers.
Touch “usb” on the audio source selection screen.
Connecting a usb memory device

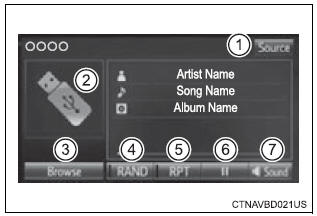

Audio control screen
Pressing the "audio" button displays the audio control screen from
any screens of the selected source.
- Audio source selection screen
appears
- displays cover art
- selecting the play mode
- Random playback
- Repeat play
- Pause
select to resume playback
- Setting the sound
Selecting a play mode
- Select “browse” on the screen.
- Select the desired play mode. Then select a song to begin using
the selected play mode.
Displaying the now playing list
Touch the cover art display.
Usb memory functions
Error messages for usb memory
Message |
Cause/correction procedures |
“Connection error. Please
consult your owner’s manual
for instructions on how
to connect the usb device.” |
This indicates a problem with the usb memory
device or its connection. |
“There are no files available
for playback. Please add
compatible files to your usb
device.” |
This indicates that no mp3/wma/aac files
are included on the usb memory device. |
Usb memory
Compatible devices
usb memory device that can be used for mp3, wma and aac playback.
- Compatible device formats
the following device format can be used:
- Usb communication format: usb2.0 Hs (480mbps) and fs (12 mbps)
- File system format: fat16/32 (windows)
- Correspondence class: mass storage class
mp3, wma and aac files written to a device with any format other than
those listed above may not play correctly, and their file names and folder
names may not be displayed correctly.
Items related to standards and limitations are as follows:
- Maximum directory hierarchy: 8 levels
- Maximum number of folders in a device: 3000 (including the root)
- Maximum number of files in a device: 9999
- Maximum number of files per folder: 255
Mp3 (mpeg audio layer 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using
mp3 compression.
Wma (windows media audio) is a microsoft audio compression format. This
format compresses audio data to a size smaller than that of the mp3 format.
Aac is short for advanced audio coding and refers to an audio compression
technology standard used with mpeg2 and mpeg4.
Mp3, wma and aac file and media/formats compatibility are limited.
- Compatible standards
mp3 (mpeg1 audio layerII, III, mpeg2 audio layerII, III)
- Compatible sampling frequencies
mpeg1 audio layerII, III: 32.1 (Khz)
mpeg2 audio layerII, III: 16.05 (Khz)
- Compatible bit rates (compatible with vbr)
mpeg1 audio layerII, III: 32-320 (kbps)
mpeg2 audio layerII, III: 8-160 (kbps)
- Compatible channel modes: stereo, joint stereo, dual channel and
monaural
- Compatible standards
wma ver. 7, 8, 9
- Compatible sampling frequencies
high profile 32.1 (Khz)
- Compatible bit rates
high profile 48-320 (kbps, vbr)
- Compatible standards
mpeg4/aac-lc
- Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48 (Khz)
- Compatible bit rates
16-320 (kbps)
- Compatible channel modes: 1 ch and 2 ch
The only files that can be recognized as mp3/wma/aac and played are
those with the extension .Mp3, .Wma or .M4a.
Id3 tags can be added to mp3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with id3 ver. 1.0, 1.1, And ver. 2.2, 2.3 Id3 tags.
(The number of characters is based on id3 ver. 1.0 And 1.1.)
Wma tags can be added to wma files, making it possible to record the
track title and artist name in the same way as with id3 tags.
Aac tags can be added to aac files, making it possible to record the track
title and artist name in the same way as with id3 tags.
- Mp3, wma and aac playback
- When a device containing mp3, wma and aac files is connected, all
files in the usb memory device are checked. Once the file check is finished,
the first mp3, wma and aac file is played. To make the file check
finish more quickly, we recommend that you do not include any files other
than mp3, wma and aac files or create any unnecessary folders.
- When a usb memory device is connected and the audio source is
changed to usb memory mode, the usb memory device will start playing
the first file in the first folder. If the same device is removed and
reconnected (and the con- tents have not been changed), the usb memory
device will resume play from the same point in which it was last used.
If the file extensions .Mp3, .Wma and .M4a are used for files other than
mp3, wma and aac files, they will be skipped (not played).
- To play mp3 files with steady sound quality, we recommend a fixed
bit
rate of at least 128 kbps and a sampling frequency of 44.1 Khz.
- There is a wide variety of freeware and other encoding software
for mp3,
wma and aac files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
- Microsoft, windows, and windows media are the registered
trademarks
of microsoft corporation in the u.S.A. And other countries.
Warning
While driving
Do not connect a usb memory device or operate the device controls. |
Notice
To prevent damage to the usb memory device or its terminals
- Do not leave the usb memory device in the vehicle. The
temperature
inside the vehicle may become high, resulting in damage to the usb
memory device.
- Do not push down on or apply unnecessary pressure to the usb
memory
device while it is connected.
- Do not insert foreign objects into the port.
|
