Follow the child restraint system manufacturer’s instructions.

Firmly secure child restraints to the seats using the latch anchors or a seat belt. Attach the top tether strap when installing a child restraint.

The lap/shoulder belt can be used if your child restraint system is not compatible with the latch (lower anchors and tethers for children) system.

Child restraint latch anchors

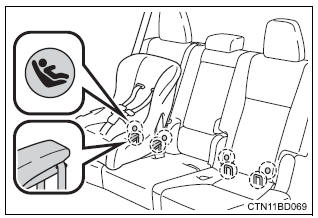

8-seat models

Latch anchors are provided for the outboard second seats. (Buttons displaying the location of the anchors are attached to the seats.)

Toyota Highlander. Installing child restraints

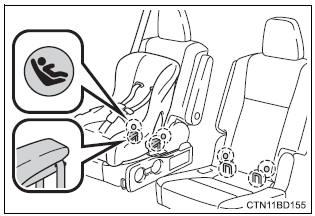

7-Seat models

Latch anchors are provided for both second seats. (Buttons displaying the location of the anchors are attached to the seats.)

Toyota Highlander. Installing child restraints

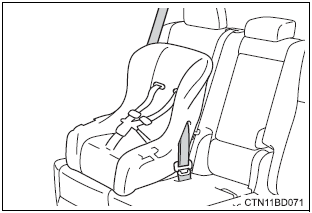

Seat belts equipped with a child restraint locking mechanism (alr/elr belts except driver's seat belt)

Toyota Highlander. Installing child restraints

Anchor brackets (for top tether strap)

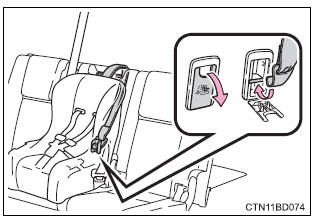

Second seats (8-seat models)

An anchor bracket is provided for each second seat.

Toyota Highlander. Second seats

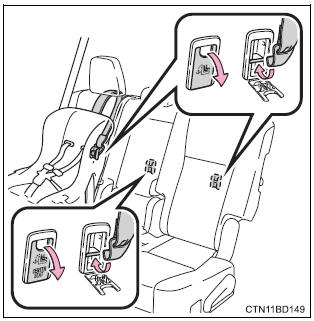

Second seats (7-seat models)

An anchor bracket is provided for both second seats.

Toyota Highlander. Second seats

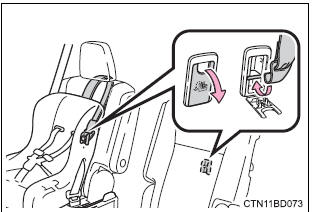

Third seats

An anchor bracket is provided for the third center seat.

Toyota Highlander. Third seats

Child restraint systems

A child restraint system for a small child or baby must itself be properly restrained on the seat with the latch anchors or the lap portion of the lap/shoulder belt. The laws of all 50 states of ...

Installation with latch system

Fold the seatback while pulling the lever. Return the seatback and secure it at the 1st lock position (most upright position). Move the seat as far back as possible. If your child restr ...
