Toyota Highlander Service Manual: Inspection

1. INSPECT SLIDING ROOF SWITCH ASSY

INSPECT SLIDING ROOF SWITCH ASSY


(a) Disconnect the sliding roof switch connector, and check the voltage or continuity of each terminal of the connector.

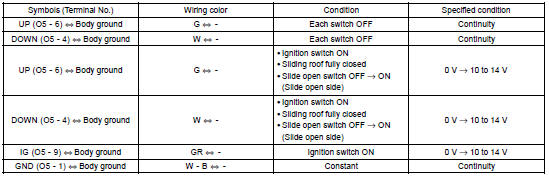

Standard

INSPECT SLIDING ROOF SWITCH ASSY
