Toyota Highlander Owners Manual: Heated steering
wheel/seat heaters/seat
ventilators
The heated steering wheel and seat heaters heat the side grips
of the steering wheel and seats, respectively. Seat ventilators
maintain good airflow by blowing air from the seats.
Warning
- Care should be taken to prevent injury if anyone in the
following categories
comes in contact with the steering wheel or seats when the heater is
on:
- Babies, small children, the elderly, the sick and the
physically challenged
- Persons with sensitive skin
- Persons who are fatigued
- Persons who have taken alcohol or drugs that induce sleep
(sleeping
drugs, cold remedies, etc.)
- Observe the following precautions to prevent the minor burns or
overheating
- Do not cover the seat with a blanket or cushion when using
the seat
heater.
- Do not use the seat heaters more than necessary.
|
Notice
- Do not put heavy objects that have an uneven surface on the seat
and do
not stick sharp objects (needles, nails, etc.) Into the seat.
- To prevent battery discharge, do not use the functions when the
engine is
stopped.
|

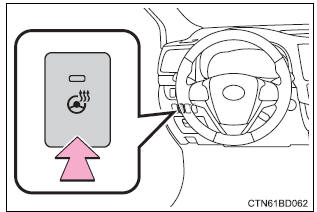

Heated steering wheel
Turn the heated steering wheel on/off
The indicator light comes on when
the heated steering wheel is operating.
The heated steering wheel will
automatically turn off after about 30
minutes.
The heated steering wheel can be used when
The engine switch is in ignition on mode.
Front seat heaters and ventilators

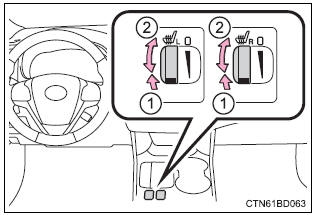

Seat heaters
- Turns the seat heater on
the indicator light comes on.
- Adjusts the seat temperature
the further you move the dial
forward, the warmer the seat
becomes.

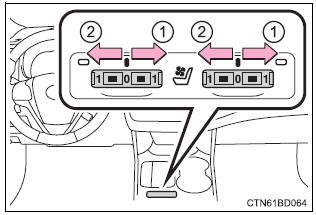

Seat heaters/ventilators
- Turns the seat heater on
the indicator light comes on.
The higher the number is, the
warmer the seat becomes.
- Blows air from the seat
the indicator light comes on.
The higher the number is, the
stronger the airflow becomes.
The seat heaters and seat heaters/ventilators can be used when
- Vehicles without a smart key system
the engine switch is in the "on" position.
- vehicles with a smart key system
the engine switch is in ignition on mode.
When not in use
- Seat heaters
turn the dial fully backward. The indicator light will turn off.
- seat heaters/ventilators
set the knob at "0". The indicator light will turn off.

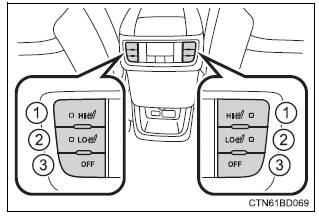

Second seat heaters
- Hi
- Lo
- Off
The indicator comes on when the
second seat heater is on.
The second seat heaters can be used when
The engine switch is in ignition on mode.
Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode
Adjusting the position of and opening and closing the air outlets
Direct air flow to the l ...
