Toyota Highlander Owners Manual: Tires and wheels

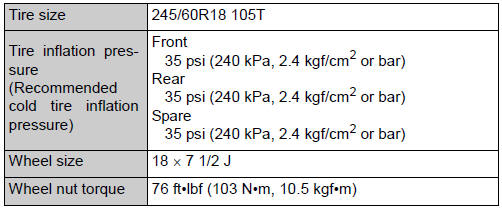

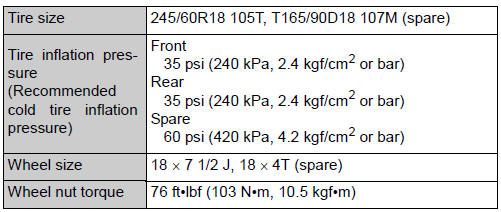

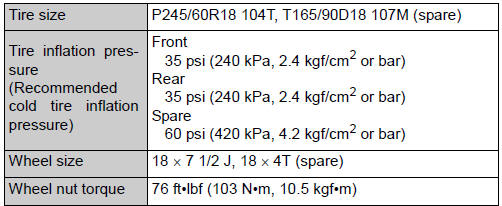

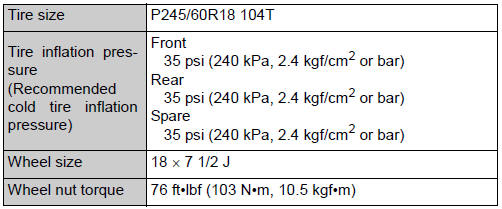

Toyota Highlander. Tires and wheels


Toyota Highlander. Tires and wheels


Toyota Highlander. Tires and wheels


Toyota Highlander. Tires and wheels


Toyota Highlander. Tires and wheels


Toyota Highlander. Tires and wheels

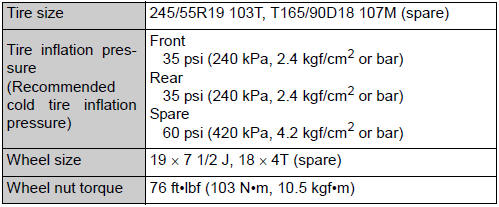

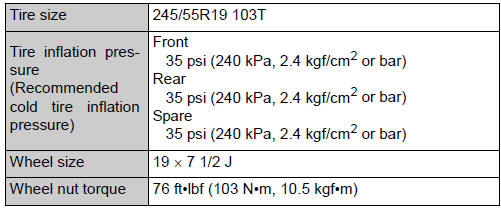

When towing a trailer (245/55r19 103t tires)

On rear tires, add 1 psi (10.0 Kpa, 0.1 Kgf/cm2 or bar) to the recommended tire inflation pressure and drive at speeds below 65 mph (104 km/h).

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick. & ...

Light bulbs
A: hb3 halogen bulbs B: h11 halogen bulbs C: wedge base bulbs (amber) D: wedge base bulbs (clear) E: h16 halogen bulbs F: double end bulbs *: If equipped ...
