1. CHECK USING INTELLIGENT TESTER
(a) Connect the intelligent tester to the DLC3.
(b) Select the DATA LIST mode on the intelligent tester.

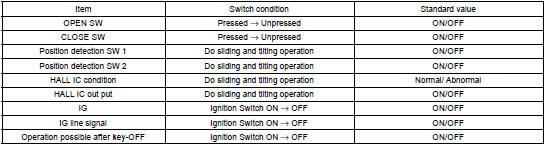

Sliding roof ECU:
(c) The active test will indicate if the part is normal or malfunctioning.
Sliding roof ECU:
Terminals of ECU
1. CHECK SLIDING ROOF DRIVE GEAR SUB- ASSY (SLIDING ROOF ECU)
(a) Disconnect the sliding roof ECU connector, and check the
voltage or continuity of each terminal of the wire harness
side connec ...
On-vehicle inspection
1. CHECK AUTO OPERATION
HINT:
When pressing the switch for 0.3 seconds or less, the roof glass moves but auto
operation does not operate.
(a) Turn the ignition switch ON.
(b) When the roof glass ...
