Toyota Highlander Service Manual: Automatic transmission / transaxle

Toyota Highlander Service Manual / Service specifications / Automatic transmission / transaxle

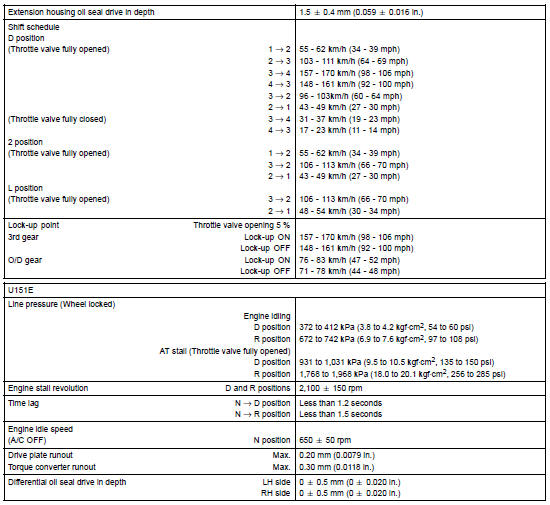

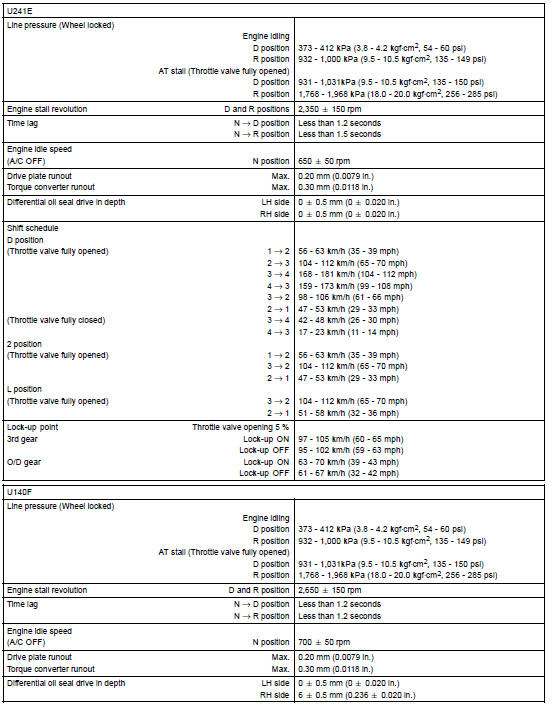

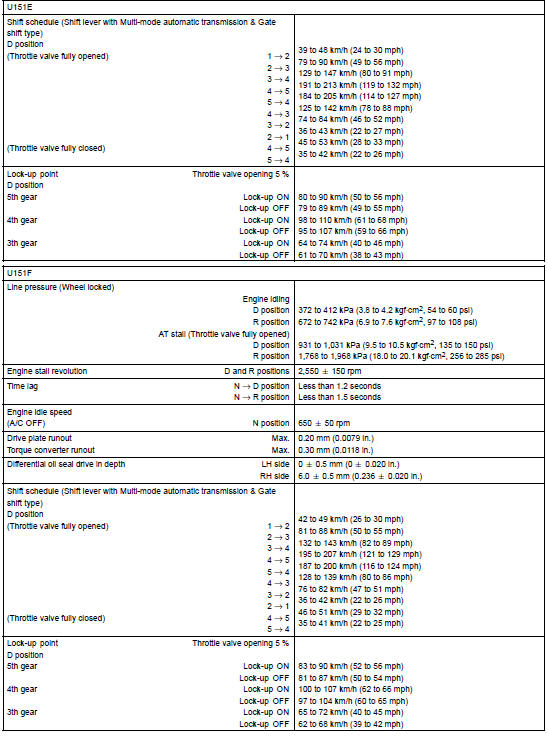

SERVICE DATA

Automatic transmission / transaxle


Automatic transmission / transaxle


Automatic transmission / transaxle

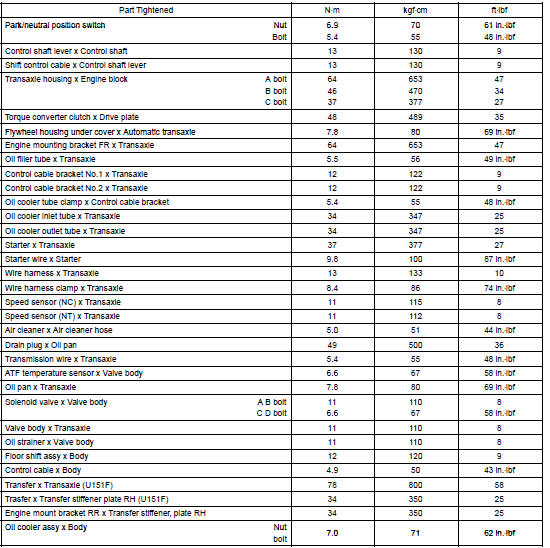

TORQUE SPECIFICATION

Automatic transmission / transaxle
