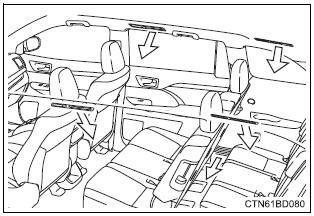

Location of air outlets

The air outlets and air volume change according to the selected airflow mode.

Toyota Highlander. Location of air outlets

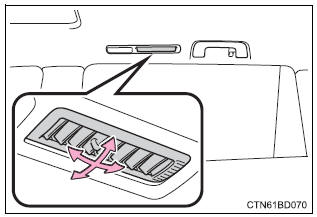

Adjusting the position of and opening and closing the air outlets

Direct air flow to the left or right, forward or backward.

Toyota Highlander. Adjusting the position of and opening and closing the air outlets

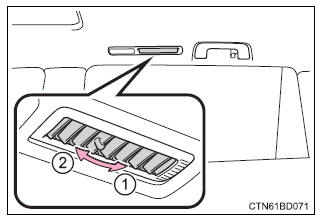

Closes the vent
slide the knob to the rear-most position.
Opens the vent

Toyota Highlander. Adjusting the position of and opening and closing the air outlets

Notice

To prevent battery discharge

Do not leave the air conditioning system on longer than necessary when the engine is stopped.
