Toyota Highlander Owners Manual: Unlocking and locking the doors from the outside

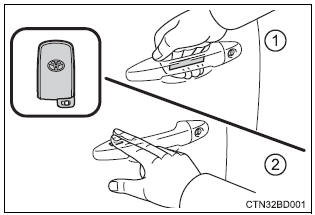

Entry function (vehicles with a smart key system)

Carry the electronic key to enable this function.

  1. Grip the driver's door handle to unlock the door. Grip the passenger's door handle to unlock all the doors.* Make sure to touch the sensor on the back of the handle.

    The doors cannot be unlocked for 3 seconds after the doors are locked.

*: The door unlock settings can be changed.

  1. Touch the lock sensor (indentation on the upper part of the door handle) to lock all the doors.

Toyota Highlander. Entry function

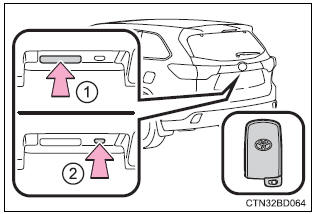

  1. Press the unlock button to unlock all the doors.

    The doors cannot be unlocked for 3 seconds after the doors are locked.

  2. Press the lock button to lock all the doors.

Toyota Highlander. Entry function

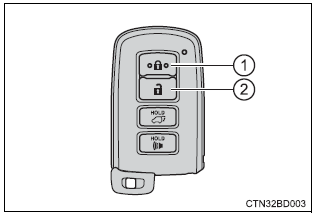

Wireless remote control

  1. Locks all the doors
  2. Unlocks the door

Pressing the button unlocks the driver's door. Pressing the button again within 5 seconds unlocks the other doors.

Press and hold to open the windows and moon roof.* (ƒZƒn183) *: This setting must be customized at your toyota dealer.

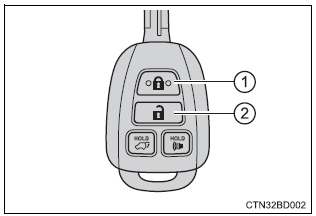

Toyota Highlander. Wireless remote control


  1. Locks all the doors
  2. Unlocks the door

Pressing the button unlocks the driver's door. Pressing the button again within 5 seconds unlocks the other doors.

Press and hold to open the windows and moon roof.* (ƒZƒn183) *: this setting must be customized at your toyota dealer.

Toyota Highlander. Wireless remote control

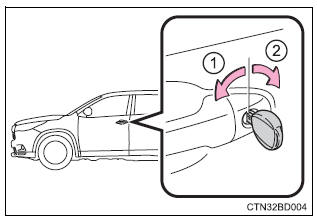

Key

  1. Locks all the doors turn and hold to close the windows and moon roof.* (ƒZƒn183)
  2. Unlocks the door turning the key unlocks the driver's door. Turning the key again within 5 seconds unlocks the other doors.

Turn and hold to open the windows and moon roof.* (ƒZƒn183) *: this setting must be customized at your toyota dealer.

Toyota Highlander. Key


The doors can also be locked and unlocked with the mechanical key.

Operation signals

Security feature

If a door is not opened within approximately 60 seconds after the doors are unlocked using the entry function or wireless remote control, the security feature automatically locks the doors again.

When the door cannot be locked by the lock sensor on the upper part of the front door handle (vehicles with a smart key system)

If the door will not lock even when the topside sensor area is touched, try touching both the topside and underside sensor areas at the same time.

Toyota Highlander. When the door cannot be locked by the lock sensor on the upper part of the front door handle


Door lock buzzer (vehicles with a smart key system)

If an attempt to lock the doors using the entry function or wireless remote control is made when a door is not fully closed, a buzzer will sound continuously for 5 seconds. Fully close the door to stop the buzzer, and lock the doors again.

Wireless reservation lock (vehicles without a smart key system)

If a door is not fully closed and the wireless remote control is used to lock the doors, the doors other than the open door will be locked. The open door will be locked after it is fully closed.

Power back door reservation lock (vehicles with a power back door)

If the wireless remote control is used to lock the doors while the power back door is closing with all side doors fully closed, the side doors are locked. The back door will be locked when it is fully closed.

If the wireless remote control is used to lock the doors while the power back door is closing with all side doors fully closed, a buzzer will sound and the emergency flashers will flash to indicate that the reservation lock is activated.

At this time the side doors are locked. The back door will be locked when it is fully closed.

Alarm (if equipped)

Locking the doors will set the alarm system.

If the smart key system or the wireless remote control does not operate properly

Vehicles with a smart key system: use the mechanical key to lock and unlock the doors. Replace the key battery with a new one if it is depleted.
