Toyota Highlander Service Manual: Torque specification

2AZ-FE

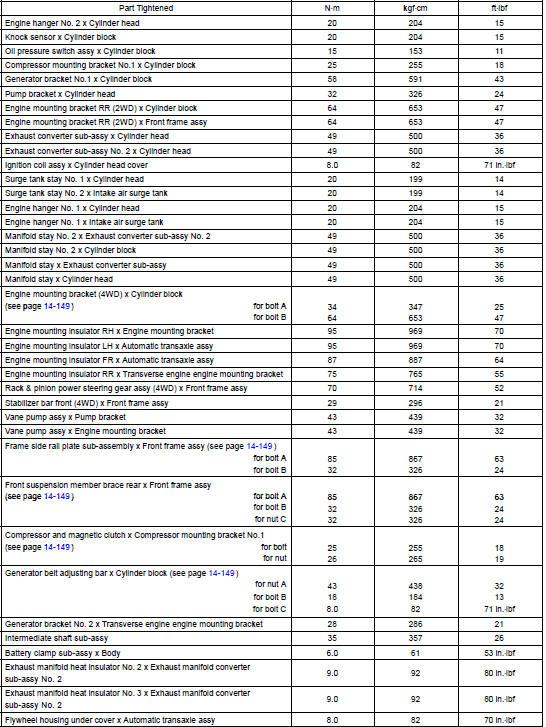

Torque specification

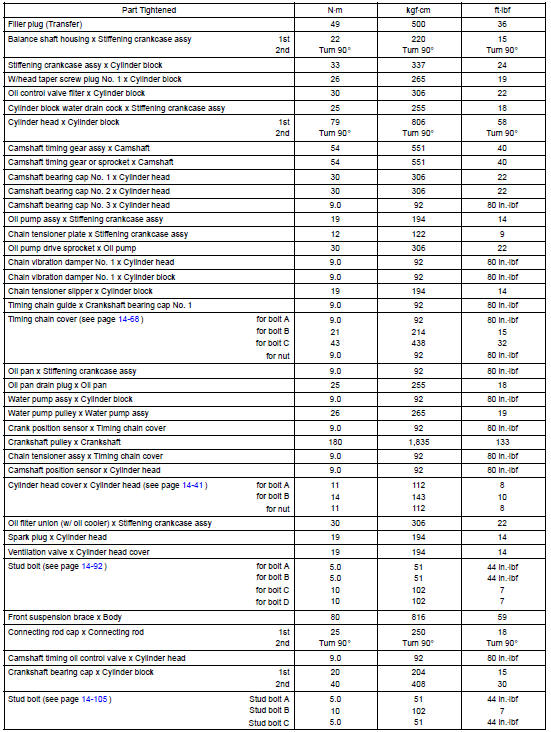

Torque specification


3MZ-FE

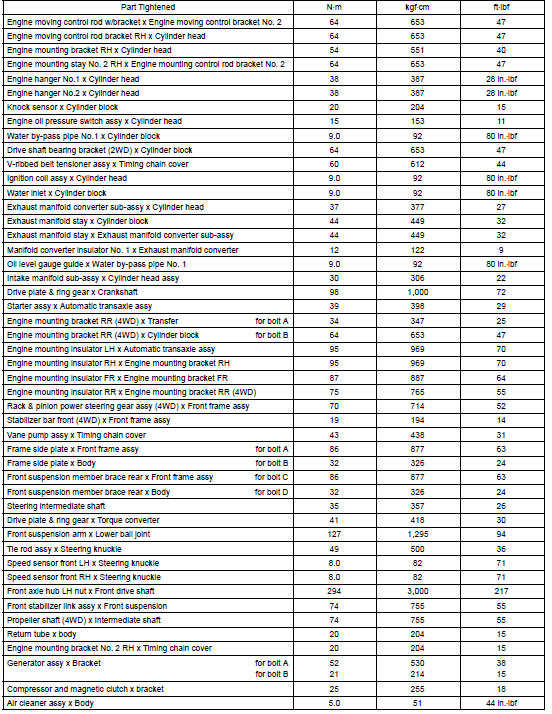

Torque specification

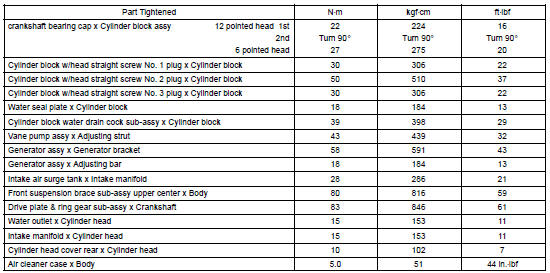

Torque specification

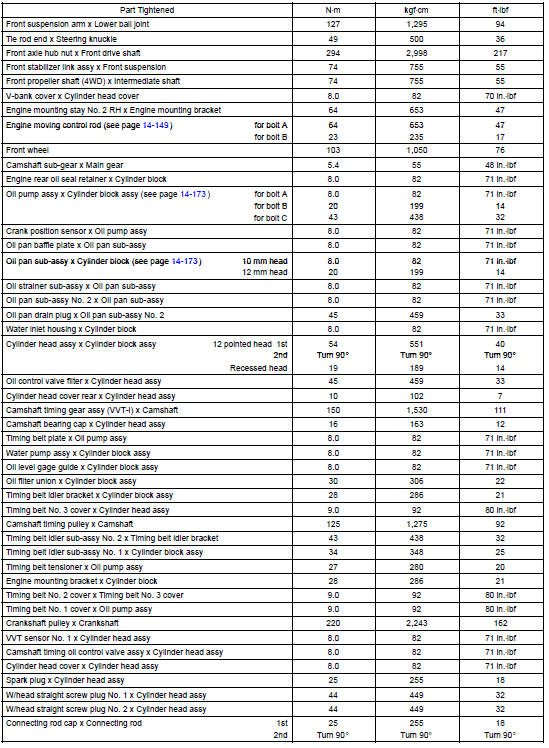

Torque specification


Service data
2AZ-FE 3MZ-FE ...

Exhaust
SERVICE DATA 2AZ-FE 3MZ-FE TORQUE SPECIFICATION 2AZ-FE 3MZ-FE ...

More about Toyota Highlander:

Crankshaft position sensor (2AZ-FE)
REPLACEMENT HINT: A bolt without a torque specification is shown in the standard bolt chart (see page 03-2 ). 1. REMOVE ENGINE UNDER COVER NO.1 (a) Remove the 6 screws, 2 clips and under cover 2. REMOVE FRONT FENDER APRON SEAL RH (a) Remove the clip, 2 bolts and apron seal. 3. REMOV ...
