Toyota Highlander Service Manual: Service data

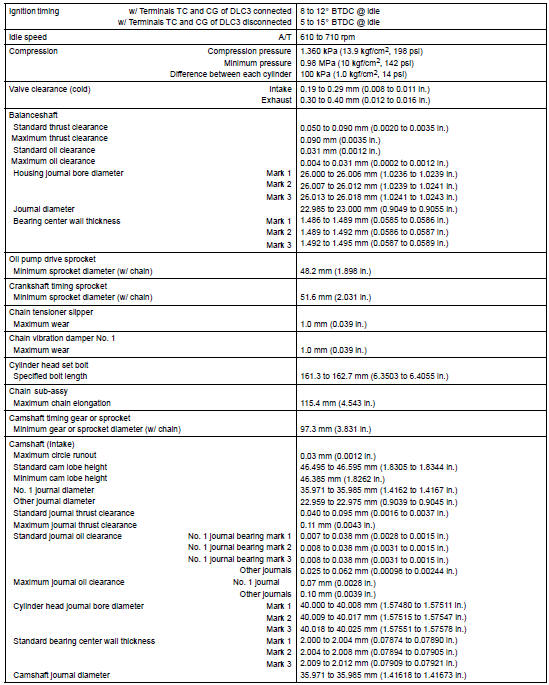

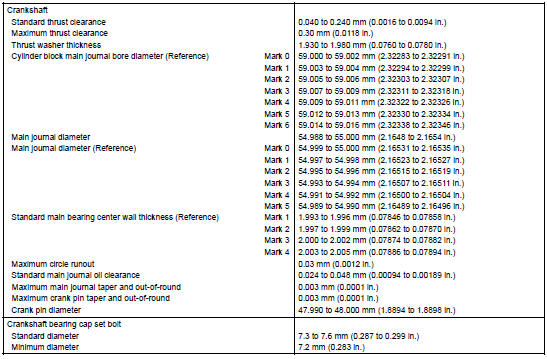

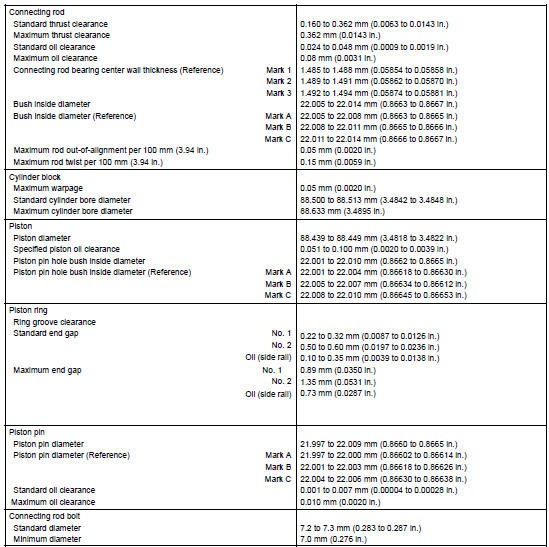

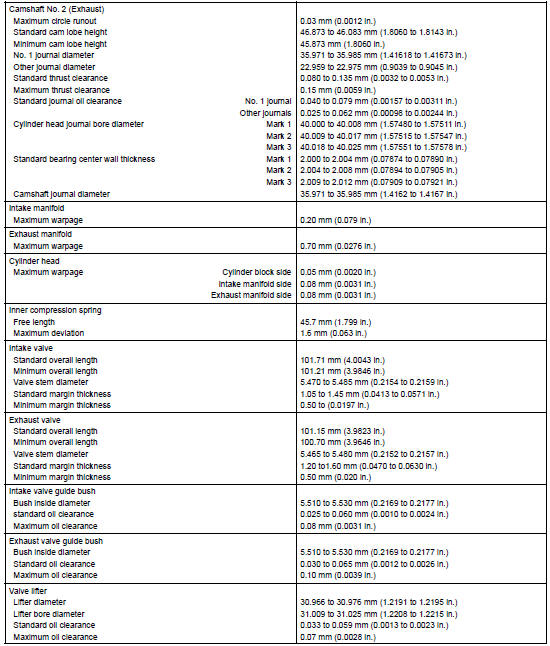

2AZ-FE

SERVICE DATA


Service data


Service data


Service data

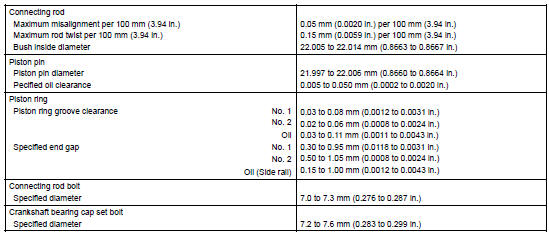

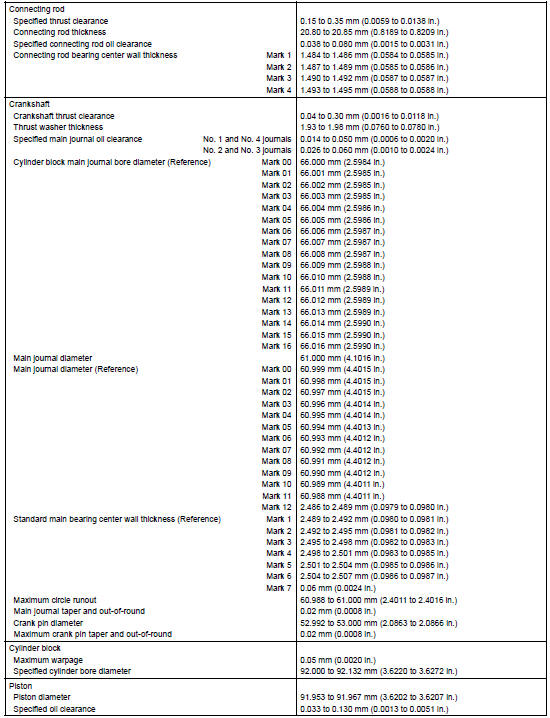

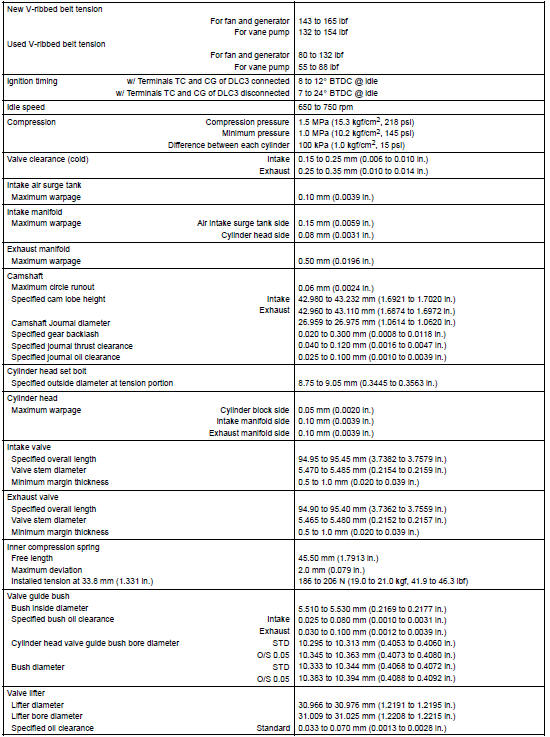

3MZ-FE

Service data


Service data


Service data


Engine mechanical
...

Torque specification
2AZ-FE 3MZ-FE ...
