Toyota Highlander Service Manual: Standard bolt

HOW TO DETERMINE BOLT STRENGTH

HOW TO DETERMINE BOLT STRENGTH

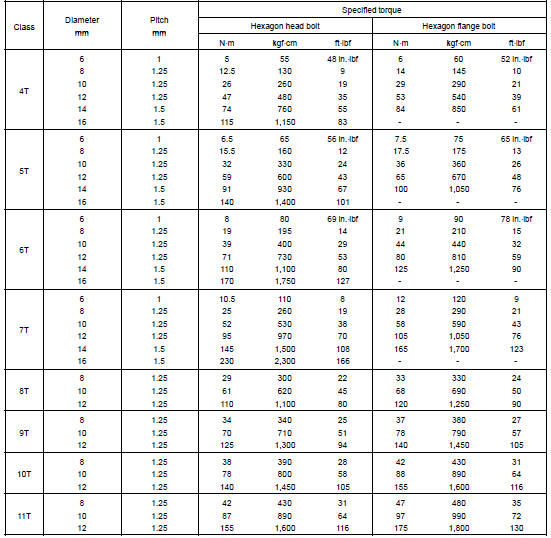

SPECIFIED TORQUE FOR STANDARD BOLTS

SPECIFIED TORQUE FOR STANDARD BOLTS

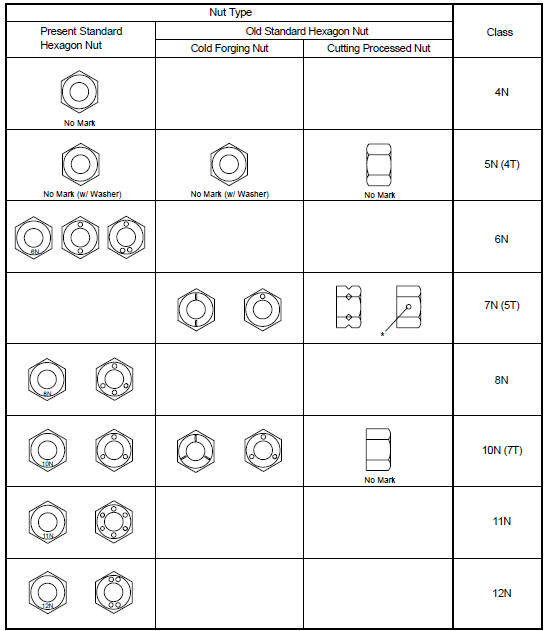

HOW TO DETERMINE NUT STRENGTH

HOW TO DETERMINE NUT STRENGTH


*: Nut with 1 or more marks on one side surface of the nut.

HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt = 4T
Nut = 4N or more
