Toyota Highlander Service Manual: Power steering

PREPARATION

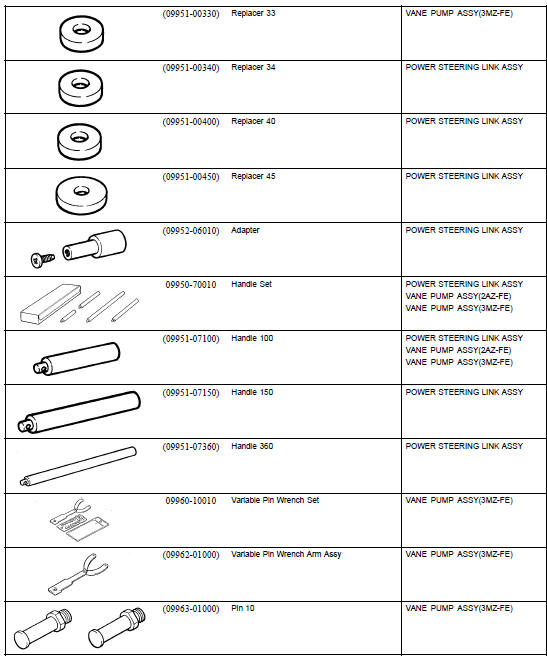

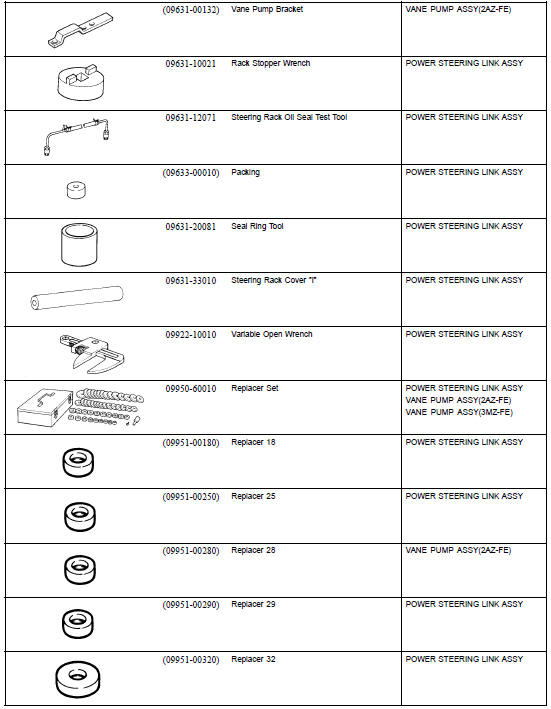

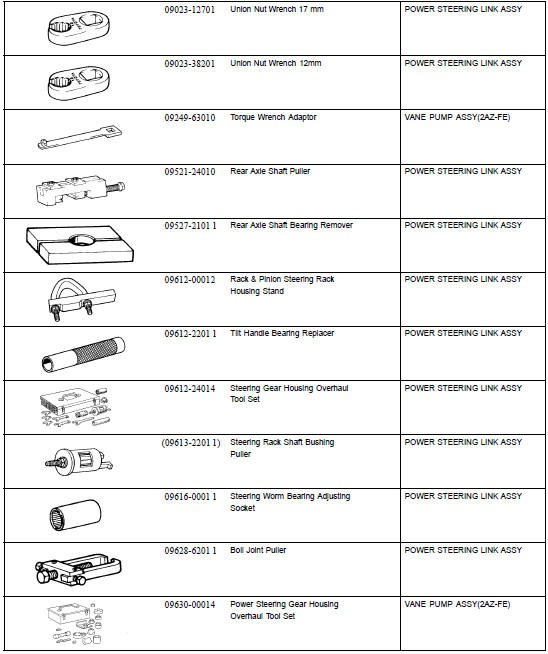

SST

Power steering


Power steering


Power steering

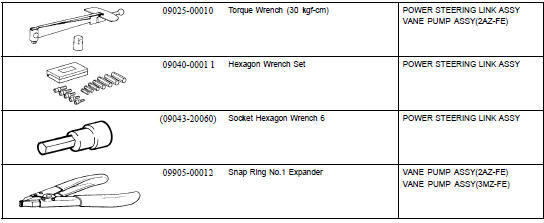

Recomended Tools

Power steering


Equipment

Power steering


Lubricant

Power steering


SSM

Power steering
