Toyota Highlander Service Manual: Location

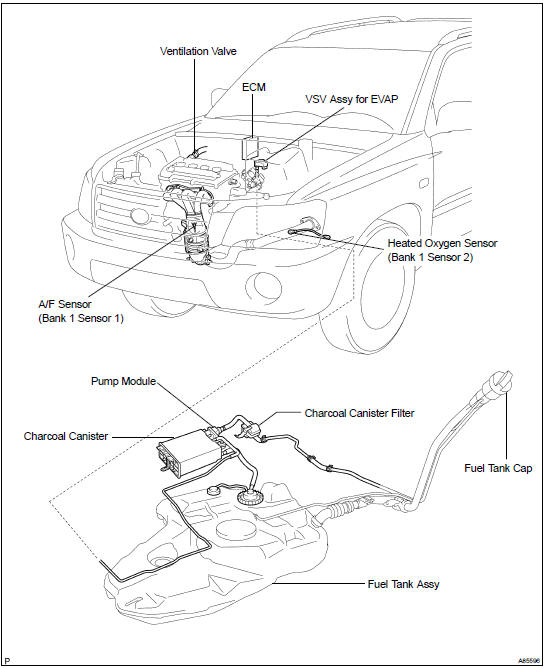

Location

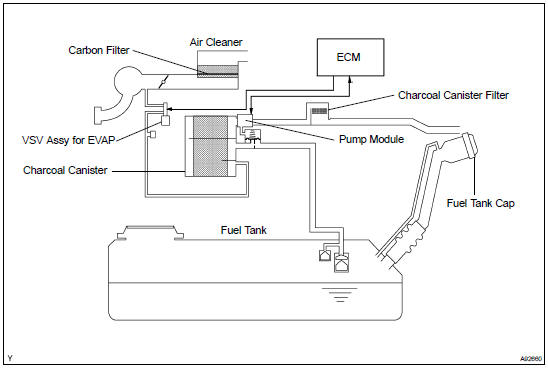

SYSTEM DIAGRAM

The emission control system is determined by the ECM based on signals from various sensors.

SYSTEM DIAGRAM


Emission control system (2AZ-FE)
...

On-vehicle inspection
1. INSPECT AIR-FUEL RATIO COMPENSATION SYSTEM (a) Measure the voltage between the terminals of the ECM connectors. Standard: NOTICE: Connect test leads to the connector's backside. The co ...
