Toyota Highlander Service Manual: Inspection

1. INSPECT OUTER MIRROR SWITCH ASSY

 INSPECT OUTER MIRROR SWITCH ASSY


(a) Inspect the mirror switch continuity.

  1.  Turn to the left/right adjustment switch to the L position.

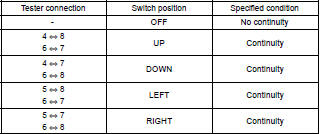

    Inspect the left side mirror switch continuity.

 INSPECT OUTER MIRROR SWITCH ASSY


If the continuity is not as specified, replace the switch.

  1.  Turn to the left/right adjustment switch to the R position.

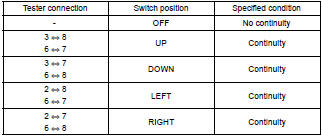

Inspect the right side mirror switch continuity

 INSPECT OUTER MIRROR SWITCH ASSY


If the continuity is not as specified, replace the switch.

2. INSPECT OUTER REAR VIEW MIRROR ASSY RH

INSPECT OUTER REAR VIEW MIRROR ASSY RH

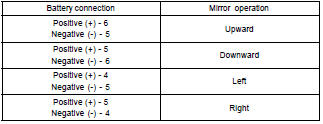

(a) Inspect operation of the mirror motor

INSPECT OUTER REAR VIEW MIRROR ASSY RH


(b) Check operation of the mirror heater.

  1.  Check the mirror between terminals 7 and 8 of the connector.

    Standard: continuity

  2.  Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.

3. INSPECT OUTER REAR VIEW MIRROR ASSY LH

 INSPECT OUTER REAR VIEW MIRROR ASSY LH

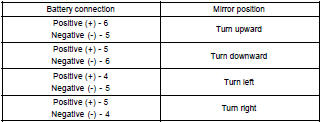

(a) Inspect operation of the mirror motor.

 INSPECT OUTER REAR VIEW MIRROR ASSY LH


(b) Check operation of the mirror heater.

  1.  Check the mirror between terminals 7 and 8 of the connector.

    Standard: continuity

  2.  Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.
Location
PROBLEM SYMPTOMS TABLE Symptom Suspected Area Mirror does not operate CIG fuse (I/P J/B)  Mirror switch  Mirror motor  Wire harness ...
