Toyota Highlander Service Manual: How to proceed with troubleshooting
Toyota Highlander Service Manual / Front suspension / Front suspension system / How to proceed with troubleshooting

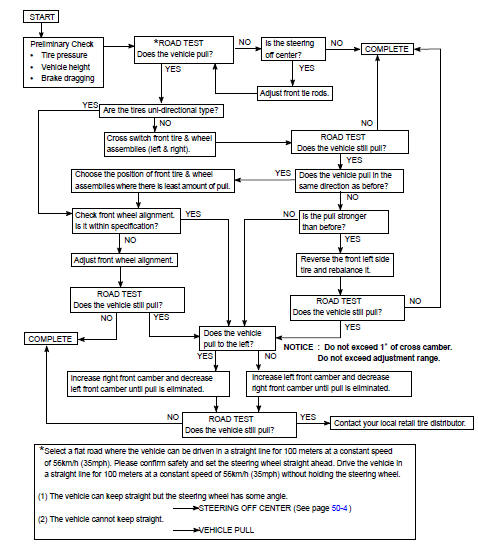

HINT: This is the repair procedure for vehicle pull.
Problem symptoms table
Use the table below to help determine the cause of the problem. The numbers
indicate the priority
of the possible cause of the problem. Check each part in order. If necessary,
replace these parts ...
Front suspension
SUSPENSION
...
