Head restraints are provided for all seats.

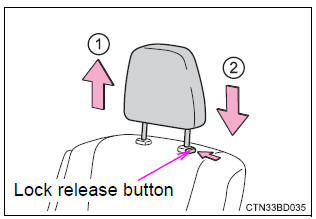

Front seats and second seats (with a side table)

Up
pull the head restraints up.
Down
push the head restraint down while pressing the lock release button.

Toyota Highlander. Front seats and second seats

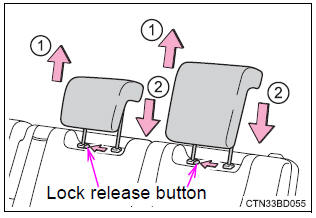

Second seats (without a side table)

Up
pull the head restraints up.
Down
push the head restraint down while pressing the lock release button.

Toyota Highlander. Second seats

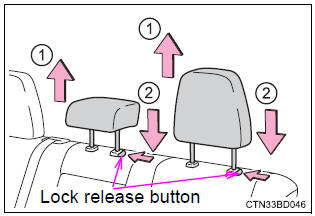

Third seats

Up
pull the head restraints up.
Down
push the head restraint down while pressing the lock release button.

Toyota Highlander. Third seats

Removing the head restraints

Front seats and second seats (with a side table)

Pull the head restraint up while pressing the lock release button.

Toyota Highlander. Removing the head restraints

Second seats (without a side table)

Pull the head restraint up while pressing the lock release button.

Toyota Highlander. Removing the head restraints

Third seats

Pull the head restraint up while pressing the lock release button.

Toyota Highlander. Removing the head restraints

Installing the head restraints

Front seats and second seats (with a side table)

Align the head restraint with the installation holes and push it down while pressing the lock release button.

Toyota Highlander. Installing the head restraints

Second seats (without a side table)

Align the head restraint with the installation holes and push it down while pressing the lock release button.

Toyota Highlander. Installing the head restraints

Third seats

Align the head restraint with the installation holes and push it down while pressing the lock release button.

Toyota Highlander. Installing the head restraints

Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

Toyota Highlander. Adjusting the height of the head restraints

Adjusting the third seat head restraints

Always raise the head restraint one level from the stowed position when using.

Warning

Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure they are locked in position.
Do not drive with the head restraints removed.
