Toyota Highlander Owners Manual: Eco driving indicator

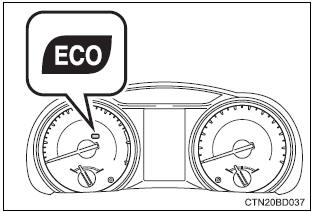

Eco driving indicator light
During eco-friendly acceleration operation (eco driving), eco driving indicator light will turn on.
When the acceleration exceeds zone of eco driving, and when the vehicle is stopped, the light turns off.

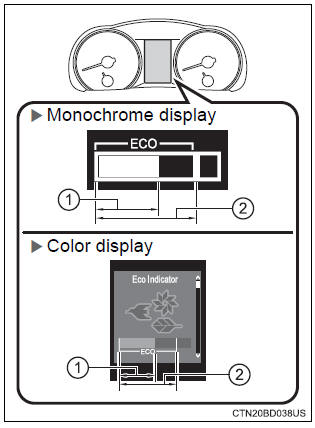

Eco driving indicator zone display
Suggests zone of eco driving with current eco driving ratio based on acceleration.
- Eco driving ratio based on acceleration if the acceleration exceeds zone of eco driving, the right side of eco driving indicator zone display blinks.
- Zone of eco driving
Operation of eco driving indicator
Eco driving indicator will not operate in the following conditions:
- the shift lever is anything other than d.
- The vehicle speed is approximately 80 mph (130 km/h) or higher.
Eco driving indicator light customization
- monochrome display
- color display
Settings display
Changing the settings
Select using
the meter control switches.
Select an item and then set it with the center button.
Customizable items
Language
select to change the language on th ...
Fuel consumption
information
Fuel consumption information can be displayed on the audio
system screen.
Audio system
...
