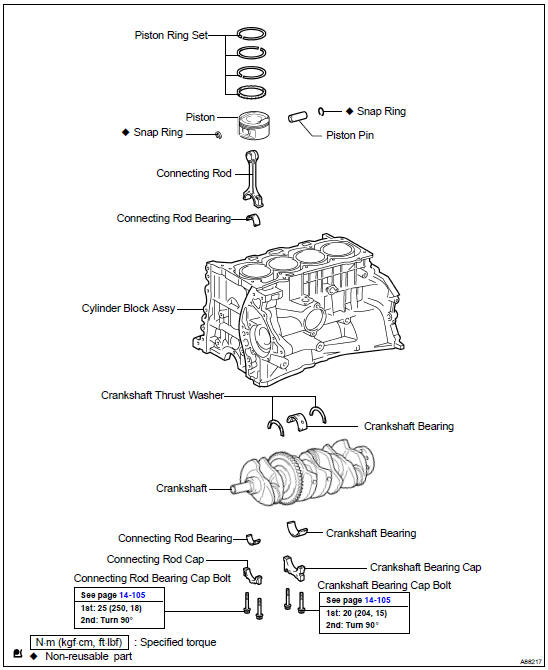

COMPONENTS

Cylinder block ASSY (2AZ-FE)


OVERHAUL

1. INSPECT CONNECTING ROD THRUST CLEARANCE

INSPECT CONNECTING ROD THRUST CLEARANCE


(a) Using a dial indicator, measure the thrust clearance while moving the connecting rod back and forth.

Standard thrust clearance: 0.160 to 0.362 mm (0.0063 to 0.0143 in.) Maximum thrust clearance: 0.362 mm (0.0143 in.)

If the thrust clearance is greater than the maximum, replace the connecting rod assembly(s). If necessary, replace the crankshaft.

2. INSPECT CONNECTING ROD OIL CLEARANCE

INSPECT CONNECTING ROD OIL CLEARANCE


HINT: The connecting rod cap bolts are tightened in 2 progressive steps. (a) Check that the matchmarks on the connecting rod and cap are aligned to ensure the correct reassembly.

HINT: The matchmarks on the connecting rods and caps are for ensuring the correct reassembly. (b) Using a 12 mm socket wrench, remove the 2 connecting rod cap bolts.

(c) Using the 2 removed connecting rod cap bolts, remove the connecting rod cap and lower bearing by wiggling the connecting rod cap right and left.

HINT: Keep the lower bearing inserted to the connecting rod cap. (d) Clean the crank pin and bearing.

(e) Check the crank pin and bearing for pitting and scratches.

INSPECT CONNECTING ROD OIL CLEARANCE


(f) Lay a strip of Plastigage on the crank pin.

INSPECT CONNECTING ROD OIL CLEARANCE


g) Check that the front mark of the connecting rod cap is facing in the correct direction.

(h) Apply a light coat of engine oil on the threads and under the heads of the connecting rod cap bolts.

(i) Install the connecting cap (see step 37).

NOTICE: Do not turn the crankshaft. (j) Remove the 2 bolts and connecting rod cap.

INSPECT CONNECTING ROD OIL CLEARANCE


(k) Measure the Plastigage at its widest point.

Standard oil clearance: 0.024 to 0.048 mm (0.0009 to 0.0019 in.) Maximum oil clearance: 0.08 mm (0.0031 in.)

If the crank pin or bearing is damaged, replace the bearings. If necessary, replace the crankshaft.

INSPECT CONNECTING ROD OIL CLEARANCE


HINT: If replacing a bearing, replace it with one that has the same number as the connecting rod. There are 3 sizes of standard bearings: 1, 2 and 3.

Standard bearing center wall thickness:

INSPECT CONNECTING ROD OIL CLEARANCE


(l) Completely remove the Plastigage.

3. REMOVE PISTON SUB-ASSY W/CONNECTING ROD

REMOVE PISTON SUB-ASSY W/CONNECTING ROD


(a) Using a ridge reamer, remove all the carbon from the top of the cylinder.

(b) Push the piston, connecting rod assembly and upper bearing through the top of the cylinder block.

HINT: Keep the bearing, connecting rod and cap together.

Arrange the piston and connecting rod assemblies in the correct order.

4. REMOVE CONNECTING ROD BEARING

5. REMOVE PISTON RING SET

REMOVE PISTON RING SET


(a) Using a piston ring expander, remove the 2 compression rings.

(b) Remove the 2 side rails and oil ring by hand.

6. REMOVE PISTON PIN HOLE SNAP RING

REMOVE PISTON PIN HOLE SNAP RING


(a) Using a small screwdriver, pry out the 2 snap rings.

7. REMOVE PISTON

REMOVE PISTON


(a) Gradually heat the piston to approximately 80 to 90 C (176 to 194 F).

REMOVE PISTON


(b) Using a plastic-faced hammer and brass bar, lightly tap out the piston pin and remove the connecting rod.

HINT:

8. INSPECT CRANKSHAFT THRUST CLEARANCE

INSPECT CRANKSHAFT THRUST CLEARANCE


(a) Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard thrust clearance: 0.040 to 0.240 mm (0.0016 to 0.0094 in.) Maximum thrust clearance: 0.30 mm (0.0118 in.)

If the thrust clearance is greater than the maximum, replace the thrust washers as a set.

Thrust washer thickness: 1.930 to 1.980 mm (0.0760 to 0.0780 in.)

9. INSPECT CRANKSHAFT OIL CLEARANCE

INSPECT CRANKSHAFT OIL CLEARANCE


(a) Uniformly loosen and remove the 10 main bearing cap bolts, in the sequence shown in the illustration.

INSPECT CRANKSHAFT OIL CLEARANCE


(b) Use 2 removed main bearing cap bolts to remove the 5 main bearing caps and 5 lower bearings.

NOTICE: Insert the bolts into one of the caps. Ease the cap out by gently pulling up and applying force toward the front and back side of the cylinder block, as shown in the illustration.

Take care not to damage the contact surfaces of the cap and cylinder block.

HINT:

(c) Lift out the crankshaft.

HINT: Keep the upper bearings together with the cylinder block.

(d) Clean each main journal and bearing.

(e) Check each main journal and bearing for pitting and scratches.

If the journal or bearing is damaged, replace the bearings.

If necessary, replace the crankshaft.

INSPECT CRANKSHAFT OIL CLEARANCE


(f) Place the crankshaft on the cylinder block.

(g) Lay a strip of Plastigage across each journal.

(h) Install the main bearing caps (see step 36).

NOTICE: Do not turn the crankshaft.

(i) Remove the main bearing cap (see steps (a) to (b) above).

INSPECT CRANKSHAFT OIL CLEARANCE


(j) Measure the Plastigage at its widest point.

Standard oil clearance: 0.024 to 0.048 mm (0.00094 to 0.00189 in.)

If the oil clearance is greater than the maximum, replace the bearings. If necessary, replace the crankshaft.

INSPECT CRANKSHAFT OIL CLEARANCE

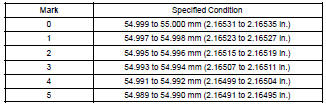

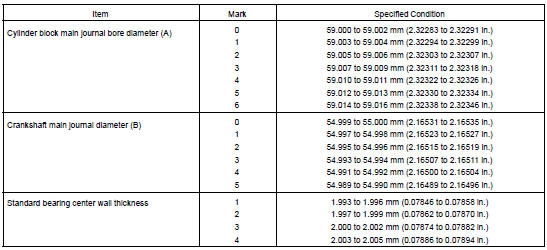

(k) If using a standard bearing, replace it with one having the same number. If the number of the bearing cannot be determined, select the correct bearing by adding together the numbers imprinted on the cylinder block and crankshaft, and then select the bearing according to the chart below. There are 4 sizes of standard bearings: 1, 2, 3, and 4.

INSPECT CRANKSHAFT OIL CLEARANCE


HINT: EXAMPLE Cylinder block 4 (A) + Crankshaft 3 (B) = Total number 7 (Use bearing 3)

Reference:

INSPECT CRANKSHAFT OIL CLEARANCE


(l) Completely remove the Plastigage.

10. REMOVE CRANKSHAFT

(a) Lift out the crankshaft.

(b) Remove the 5 upper main bearings and 2 thrust washers from the cylinder block.

HINT: Arrange the main bearings and thrust washers in the correct order.

11. REMOVE CRANKSHAFT THRUST WASHER UPPER

12. REMOVE CRANKSHAFT BEARING

HINT: Arrange the bearings in the correct order.

13. REMOVE CRANKSHAFT BEARING NO.2

HINT: Arrange the main bearings and thrust washers in the correct order.

14. REMOVE STUD BOLT

15. CLEAN CYLINDER BLOCK

NOTICE: If the cylinder is washed at high temperatures, the cylinder liner sticks out beyond the cylinder block.

Always wash the cylinder block at a temperature of 45 C (113 F) or less.

16. INSPECT CYLINDER BLOCK FOR FLATNESS

 INSPECT CYLINDER BLOCK FOR FLATNESS


(a) Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head gasket for warpage.

Maximum warpage: 0.05 mm (0.0020 in.)

If the warpage is greater than the maximum, replace the cylinder block.

17. INSPECT CYLINDER BORE

 INSPECT CYLINDER BORE


(a) Using a cylinder gauge, measure the cylinder bore diameter at positions A and B in the thrust and axial directions.

Standard diameter: 88.500 to 88.513 mm (3.4842 to 3.4848 in.) Maximum diameter: 88.633 mm (3.4895 in.)

If the measured diameters is greater than the standard, replace the cylinder block.

18. INSPECT PISTON DIAMETER



(a) Using a micrometer, measure the piston diameter at right angles to the piston pin center line, 30.3 mm (1.193 in.) from the piston head.

Piston diameter: 88.439 to 88.449 mm (3.4818 to 3.4822 in.)

19. INSPECT PISTON CLEARANCE

 INSPECT PISTON CLEARANCE


(a) Subtract the piston diameter measurement from the cylinder bore diameter measurement.

Specified oil clearance: 0.051 to 0.100 mm (0.0020 to 0.0039 in.)

If the clearance is greater than the maximum, replace all the 4 pistons. If necessary, replace the cylinder block.

20. INSPECT RING GROOVE CLEARANCE

INSPECT RING GROOVE CLEARANCE


(a) Using a feeler gauge, measure the clearance between the piston ring and the wall of the ring groove.

Ring groove clearance: 0.030 to 0.070 mm (0.0012 to 0.0028 in.)

If the clearance is not as specified, replace the piston.

21. INSPECT PISTON RING END GAP

INSPECT PISTON RING END GAP


(a) Using a piston, push the piston ring a little beyond the bottom of the ring travel, 110 mm (4.33 in.) from the top of the cylinder block.

INSPECT PISTON RING END GAP


(b) Using a feeler gauge, measure the end gap.

Standard end gap: No. 1 0.22 to 0.32 mm (0.0087 to 0.0126 in.) No. 2 0.50 to 0.60 mm (0.0197 to 0.0236 in.) Oil (side rail) 0.10 to 0.35 mm (0.0039 to 0.0138 in.)

Maximum end gap: No. 1 0.89 mm (0.0350 in.) No. 2 1.35 mm (0.0531 in.) Oil (side rail) 0.73 mm (0.0287 in.)

If the end gap is greater than the maximum, replace the piston ring. If the end gap is greater than the maximum even with a new piston ring, replace the cylinder block.

22. INSPECT PISTON PIN OIL CLEARANCE

INSPECT PISTON PIN OIL CLEARANCE


(a) Using a caliper gauge, measure the inside diameter of the piston bushing.

Pin hole bush diameter: 22.001 to 22.010 mm (0.8662 to 0.8665 in.)

INSPECT PISTON PIN OIL CLEARANCE


Pin hole bush diameter (Reference):

INSPECT PISTON PIN OIL CLEARANCE


INSPECT PISTON PIN OIL CLEARANCE


(b) Using a micrometer, measure the piston pin diameter.

Piston pin diameter: 21.997 to 22.009 mm (0.8660 to 0.8665 in.)

Piston pin diameter (Reference):

INSPECT PISTON PIN OIL CLEARANCE


(c) Using a caliper gauge, measure the inside diameter of the connecting rod bush.

Bush inside diameter: 22.005 to 22.014 mm (0.8663 to 0.8667 in.)

Bush inside diameter:

INSPECT PISTON PIN OIL CLEARANCE


(d) Subtract the piston pin diameter measurement from the piton pin bush hole diameter measurement.

Standard oil clearance: 0.001 to 0.007 mm (0.00004 to 0.00028 in.) Maximum oil clearance: 0.010 mm (0.0020 in.)

If the oil clearance is greater than maximum, replace the connecting rod. If necessary, replace the piston and piston pin as a set.

INSPECT PISTON PIN OIL CLEARANCE


If the oil clearance is greater than the maximum, replace the connecting rod. If necessary, replace the piston and piston pin as a set.

(e) Subtract the piston pin diameter measurement from the bushing inside diameter measurement.

Standard oil clearance: 0.005 to 0.011 mm (0.0002 to 0.0004 in.) Maximum oil clearance: 0.010 mm (0.0020 in.)

If the oil clearance is greater than the maximum, replace the connecting rod. If necessary, replace the connecting rod and piston pin as a set.

23. INSPECT CONNECTING ROD SUB-ASSY

 INSPECT CONNECTING ROD SUB-ASSY


(a) Using a rod aligner and feeler gauge, check the connecting rod alignment.

  1.  Check for out-of-alignment.

Maximum out-of-alignment: 0.05 mm (0.0020 in.) per 100 mm (3.94 in.)

If the out-of-alignment is greater than the maximum, replace the connecting rod assembly.

 INSPECT CONNECTING ROD SUB-ASSY


  1. Check for twist.

Maximum twist: 0.15 mm (0.0059 in.) per 100 mm (3.94 in.)

If the twist is greater than the maximum, replace the connecting rod assembly.

24. INSPECT CONNECTING ROD BOLT

 INSPECT CONNECTING ROD BOLT


(a) Using a vernier caliper, measure the tension portion diameter

of the bolt.

Standard diameter: 7.2 to 7.3 mm (0.283 to 0.287 in.) Maximum diameter: 7.0 mm (0.276 in.)

If the diameter is less than the minimum, replace the bolt.

25. INSPECT CRANKSHAFT

INSPECT CRANKSHAFT


(a) Using a dial indicator and V-blocks, measure the circle runout, as shown in the illustration.

Maximum circle runout: 0.03 mm (0.0012 in.)

If the circle runout is greater than the maximum, replace the crankshaft

INSPECT CRANKSHAFT


(b) Using a micrometer, measure the diameter of each main journal.

Diameter: 54.988 to 55.000 mm (2.16488 to 2.16535 in.)

If the diameter is not as specified, check the oil clearance (see step 26). If necessary, replace the crankshaft.

(c) Check each main journal for taper and out-of-round as shown in the illustration.

Maximum taper and out-of-round: 0.003 mm (0.0001 in.)

If the taper and out-of-round is greater than the maximum, replace the crankshaft.

Diameter (Reference):

INSPECT CRANKSHAFT


INSPECT CRANKSHAFT


(d) Using a micrometer, measure the diameter of each crank pin.

Diameter: 47.990 to 48.000 mm (1.8894 to 1.8898 in.)

If the diameter is not as specified, check the oil clearance (see step 2). If necessary, replace the crankshaft.

(e) Check each crank pin for taper and out-of-round as shown in the illustration.

Maximum taper and out-of-round: 0.003 mm (0.0001 in.)

If the taper and out-of-round is greater than the maximum, replace the crankshaft.

26. INSPECT CRANKSHAFT BEARING CAP SET BOLT

INSPECT CRANKSHAFT BEARING CAP SET BOLT


(a) Using a vernier caliper, measure the tension portion diameter of the bolt.

Standard diameter: 7.3 to 7.6 mm (0.287 to 0.299 in.) Minimum diameter: 7.2 mm (0.283 in.)

If the diameter is less than the minimum, replace the bolt.

27. INSTALL RING PIN

INSTALL RING PIN


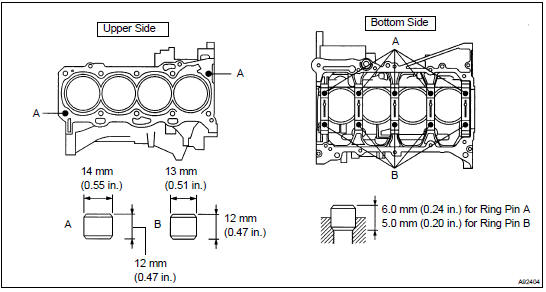

(a) Using a plastic-faced hammer, tap into the ring pin.

28. INSTALL TIGHT PLUG

(a) Apply adhesive around the tight plugs.

Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent.

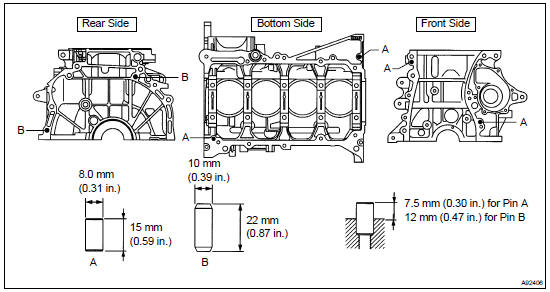

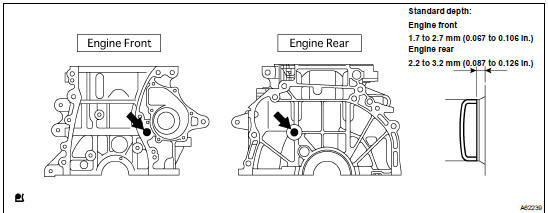

(b) Using SST, install new tight plugs as shown in the illustration.

SST 09950- 60010 (09951- 00200), 09950- 70010 (09951-07100)

INSTALL TIGHT PLUG


29. INSTALL STUD BOLT

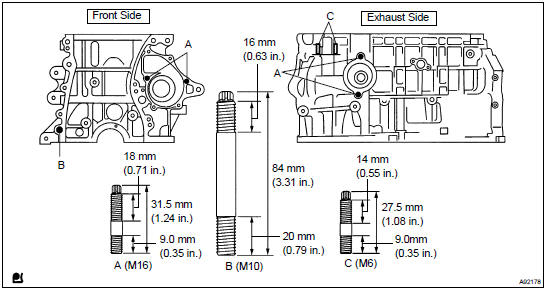

(a) Install the stud bolts as shown in the illustration.

Torque: 5.0 NVm (51 kgfVcm, 44 in.Vlbf) for stud bolt A 10 NVm (102 kgfVcm, 7 ft.lbf) for stud bolt B 5.0 NVm (51 kgfVcm, 44 in.Vlbf) for stud bolt C

INSTALL STUD BOLT


30. INSTALL STRAIGHT PIN

(a) Using a plastic-faced hammer, tap into the straight pin.

 INSTALL STRAIGHT PIN


31. INSTALL PISTON

INSTALL PISTON


(a) Using a small screwdriver, install a new snap ring at one end of the piston pin hole.

(b) Gradually heat the piston to approximately 80 to 90 C (176 to 194 F).

INSTALL PISTON


(c) Align the front marks of the piston and connecting rod, and push in the piston with your thumb.

(d) Using a small screwdriver, install a new snap ring on the other end of the piston pin hole.

32. INSTALL PISTON RING SET

INSTALL PISTON RING SET


(a) Install the oil ring expander and 2 side rails by hand.

(b) Using a piston ring expander, install the 2 compression rings with the painted mark as shown in the illustration.

NOTICE: Install the compression ring No. 2 with the code mark (2N) facing upward.

INSTALL PISTON RING SET


(c) Position the piston rings so that the ring ends are as shown in the illustration.

33. INSTALL CRANKSHAFT BEARING

INSTALL CRANKSHAFT BEARING


(a) Install the upper bearing with an oil groove on the cylinder block.

NOTICE: Clean the contact surfaces of the bearing and the cylinder block. The surfaces should be free of dust and oils.

34. INSTALL CRANKSHAFT BEARING NO.2

INSTALL CRANKSHAFT BEARING NO.2


(a) Install the lower bearing on bearing cap.

NOTICE: Clean the contact surfaces of the bearing and the bearing cap. The surfaces should be free of dust and oils.

35. INSTALL CRANKSHAFT THRUST WASHER UPPER

INSTALL CRANKSHAFT THRUST WASHER UPPER


(a) Install the 2 thrust washers under the No. 3 journal position of the cylinder block with the oil grooves facing outward.

36. INSTALL CRANKSHAFT

(a) Apply engine oil to upper bearing and install the crankshaft on the cylinder block.

(b) Examine the front marks and numbers and install the bearing caps on the cylinder block.

(c) Apply a light coat of engine oil on the threads and under the head of bearing cap bolts.

INSTALL CRANKSHAFT


(d) Install and uniformly tighten 10 main bearing cap bolts in several passes,in the sequence shown.

Torque: 40 NVm (408 kgfVcm, 30 ftVlbf)

INSTALL CRANKSHAFT


(e) Mark the front side of the bearing cap bolts with paint.

(f) Retighten the bearing cap bolts 90 in the sequence shown.

(g) Check that the painted mark is now at a 90 angle to the front.

(h) Check that the crankshaft turns smoothly.

37. INSTALL CONNECTING ROD BEARING

INSTALL CONNECTING ROD BEARING


(a) Align the bearing claw with the groove of the connecting rod or connecting cap.

NOTICE: Clean the backside of the bearing and the bearing surface of the connecting rod. The surface should be free of dust and oil.

38. INSTALL PISTON

NOTICE: The connecting rod cap bolts are tightened in 2 progressive steps.

(a) Apply engine oil to the cylinder walls, the pistons, and the surfaces of connecting rod bearings.

(b) Check the position of the piston ring ends.

INSTALL PISTON


(c) Using a piston ring compressor, push the correctly numbered piston and connecting rod assemblies into each cylinder with the front mark of the piston facing forward.

NOTICE: Match the numbered connecting rod cap with the connecting rod.

INSTALL PISTON


(d) Check that the protrusion of the connecting rod cap is facing in the correct direction.

(e) Apply a light coat of engine oil on the threads and under the heads of the connecting rod cap bolts.

(f) Using a 12 mm socket wrench, uniformly tighten the 2 bolts.

Torque: 25 NVm (255 kgfVcm, 18 ftVlbf) (g) Mark the front of the connecting cap bolts with paint.

INSTALL PISTON


(h) Retighten the cap bolts 90 as shown in the illustration.

(i) Check that the crankshaft turns smoothly.

SST 09011-38121

Cylinder head ASSY (2AZ-FE)
COMPONENTS OVERHAUL 1. REMOVE VALVE LIFTER HINT: Arrange the valve lifters in the correct order. 2. REMOVE INTAKE VALVE (a) Using SST and wooden blocks, compress and remove the 8 valve ...

Engine (3MZ-FE)
INSPECTION 1. INSPECT ENGINE COOLANT (See page 16-20 ) 2. INSPECT ENGINE OIL 3. INSPECT BATTERY (See page 19-36 ) 4. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSY 5. INSPECT SPARK PLUG (See page 18 ...

More about Toyota Highlander:

Oil filter sub-ASSY (3MZ-FE)
REPLACEMENT CAUTION: Prolonged and repeated contact of mineral oil with the skin will deplete the skin's natural fats, leading to dryness, irritation and dermatitis. In addition, used engine oil contains harmful contaminants which may cause skin cancer. Wear protective clothing and ...

В© 2011-2019 Copyright www.tohighlander.com
