Toyota Highlander Service Manual: Coolant (2AZ-FE)

REPLACEMENT

1. DRAIN ENGINE COOLANT

(a) Remove the radiator cap.

CAUTION: Do not remove the radiator cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns. (b) Drain engine coolant by loosening the radiator drain plug and the engine's cylinder block drain cock plug.

HINT: Engine coolant inside the radiator is drained from the drain hole located on the bottom of the engine under cover.

(c) Tighten the cylinder block drain cock plug.

Torque: 25 NVm (255 kgfVcm, 18 ftVlbf)

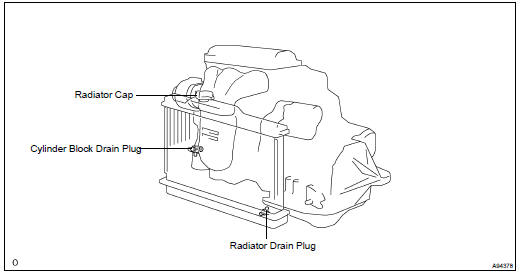

DRAIN ENGINE COOLANT


2. ADD ENGINE COOLANT

(a) Tighten the radiator drain plug.

(b) Add engine coolant into the radiator until it overflows.

Capacity:

ADD ENGINE COOLANT


HINT:

NOTICE: Do not use plain water alone.

(c) Pour coolant into the radiator reservoir tank until the coolant reaches the full line.

(d) Install the radiator cap.

(e) Start the engine and run the engine for 10 seconds.

(f) Remove the radiator cap after 10 seconds. Pour coolant if the coolant level is lower.

(g) Repeat steps (d) to (f) until the coolant level remains the same from steps (d) to (f).

HINT: Perform the procedures above before the engine warms up. A warmed up engine causes the thermostat valve to open, and the air inside the engine circulates between the radiator and the engine.

(h) Install the radiator cap.

(i) Warm up the engine until the thermostat valve begins to open.

HINT: As the engine warms up, press the radiator inlet and outlet hoses several times by hand.

(j) Stop the engine and wait until the coolant cools down to the ambient temperature. If the coolant is below the full line, add coolant.

(k) Install the radiator cap and check the radiator reservoir tank coolant level. If it is below the full line, add coolant.

3. CHECK FOR ENGINE COOLANT LEAKS

(a) Fill the radiator with coolant and attach a radiator cap tester.

(b) Pump it to 118 kPa (1.2 kgf/cm2, 17.1 psi) and check leakage.

Inspection
1. INSPECT RELAY (Marking: FAN NO. 1, FAN NO. 3) (a) Measure the resistance of the relay. Standard: If the result is not as specified, replace the relay. 2. INSPECT RELAY (Making: FAN NO. ...

Water pump ASSY (2AZ-FE)
REPLACEMENT 1. DRAIN ENGINE COOLANT (See page 16-6 ) 2. REMOVE FRONT WHEEL RH 3. REMOVE FRONT FENDER APRON SEAL RH 4. REMOVE ENGINE MOVING CONTROL ROD W/BRACKET (See page 14-24 ) 5. REMOVE ENGINE ...
