Toyota Highlander Service Manual: Components

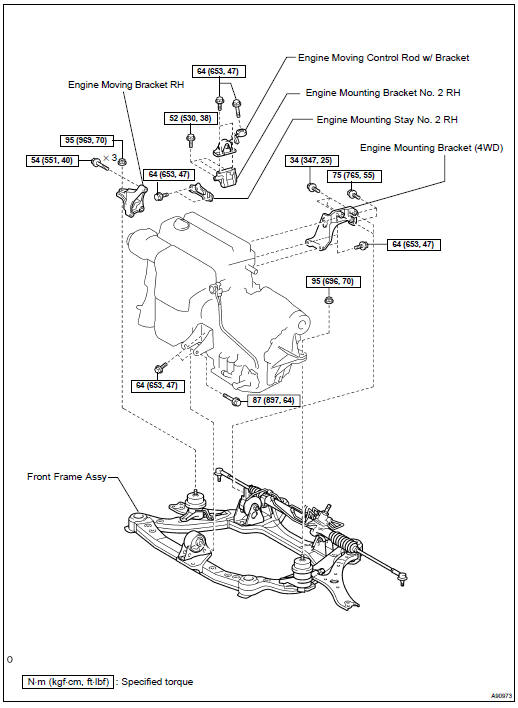

Components

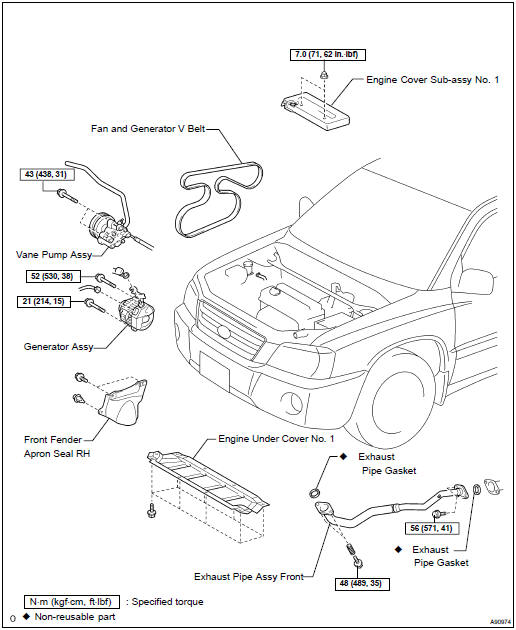

Components

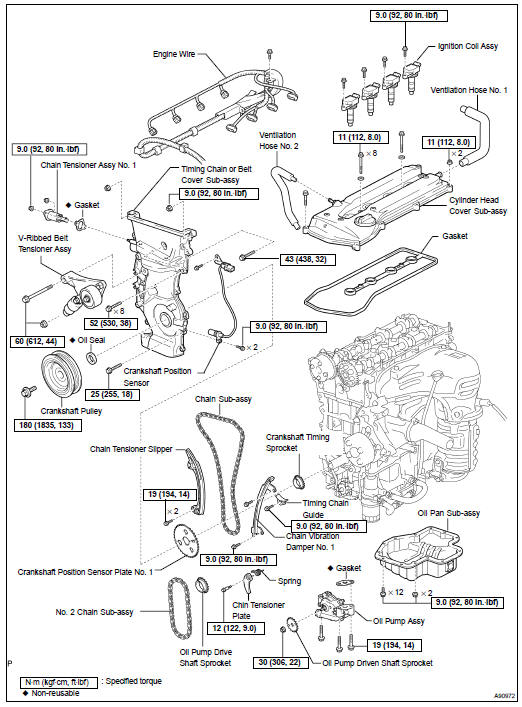

Components


Components

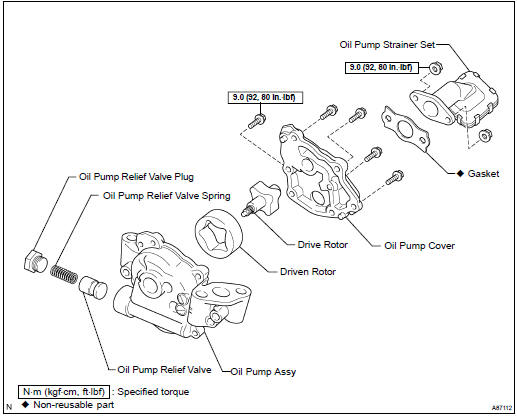

Oil pump ASSY (2AZ-FE)
...

Replacement
1. REMOVE FRONT WHEEL RH 2. REMOVE ENGINE UNDER COVER NO.1 3. REMOVE FRONT FENDER APRON SEAL RH 4. DRAIN ENGINE OIL (a) Install a new gasket and the drain plug after draining engine oil. Torque ...

More about Toyota Highlander:

Drive belt (3MZ-FE)
REPLACEMENT 1. REMOVE FRONT WHEEL RH 2. REMOVE ENGINE UNDER COVER NO.1 3. REMOVE FRONT FENDER APRON SEAL RH 4. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (a) Loosen bolts A and B. (b) Loosen adjusting bolt C and remove the belt. 5. REMOVE VANE PUMP V BELT (a) Loosen ...
