Toyota Highlander Owners Manual: Typical dot and tire identification number (tin)
Toyota Highlander Owners Manual / Vehicle specifications / Specifications / Tire information / Typical dot and tire identification number (tin)

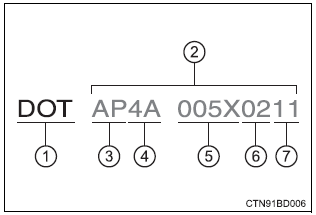

- Dot symbol*
- tire identification number (tin)
- tire manufacturer’s identification mark
- tire size code
- manufacturer’s optional tire type code (3 or 4 letters)
- manufacturing week
- manufacturing year
*: the dot symbol certifies that the tire conforms to applicable federal motor vehicle safety standards.
